DIY Touch Screen Trimix Analyser

[Francisco Trevisan PY2ALC]

Bill of material

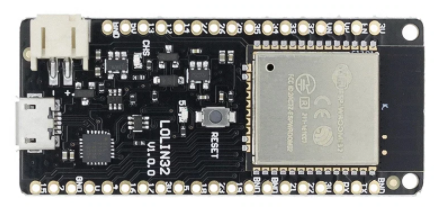

WEMOS LOLIN or compatible ESP32 board
View attachment 654280

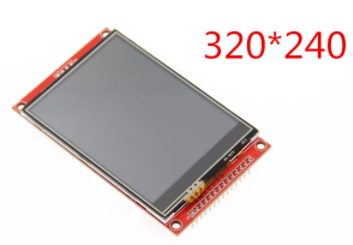

3.2 inch 320*240 SPI Serial TFT LCD Module Display Screen with Touch Panel Driver IC ILI9341 for MCU

View attachment 654281

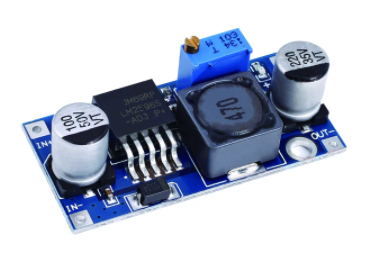

DC-DC Step Down Converter Module LM2596 DC 4.0~40 to 1.3-37V Adjustable Voltage Regulator


Adjust it to 3V output!

View attachment 654282

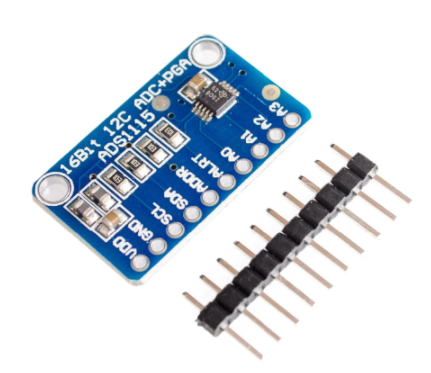

16 Bit I2C ADS1115 ADS1015 Module ADC 4 Channel with Pro Gain Amplifier 2.0V to 5.5V for Arduino RPi
View attachment 654283

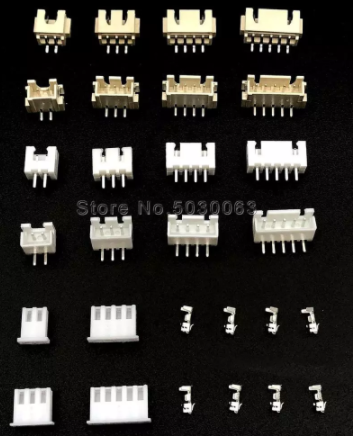

XH 2.54mm connectors and terminals 2 and 4 pins
View attachment 654284

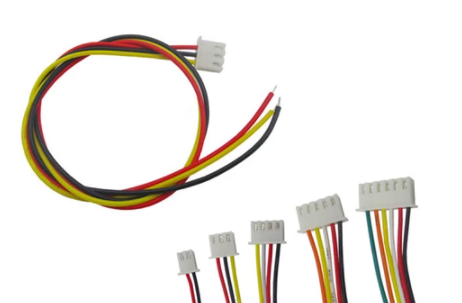

XH 2.54 cables 2 and 4 pins
View attachment 654285

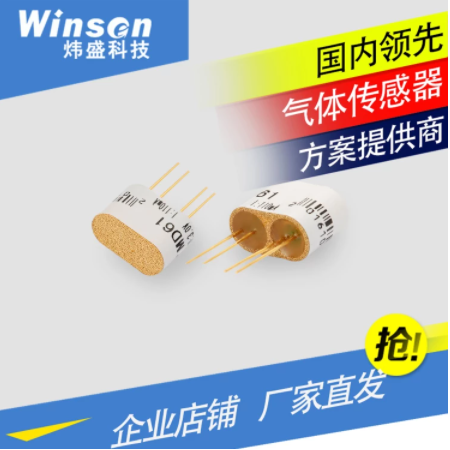

MD61 Thermal Conductivity Gas Sensor
View attachment 654286

CITY AO2 PTB-18.10 A02 AA428-210 or similar Oxygen Sensor
View attachment 654287

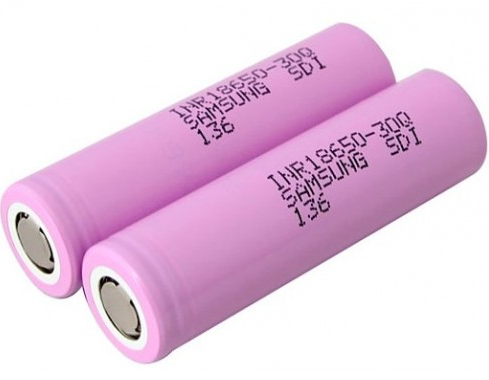

18650 Li Ion battery
View attachment 654288

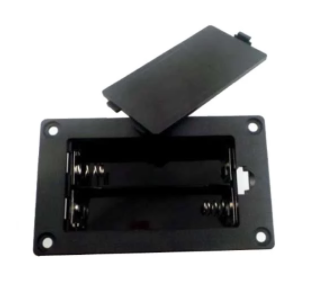

18650 Li Ion battery case (serial connected)
View attachment 654289

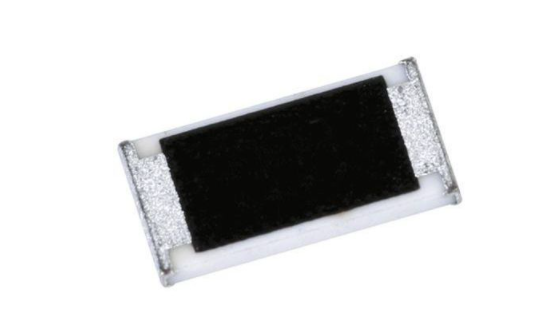

10k 1206 SMD resistor
2k 1206 SMD resistor
View attachment 654290

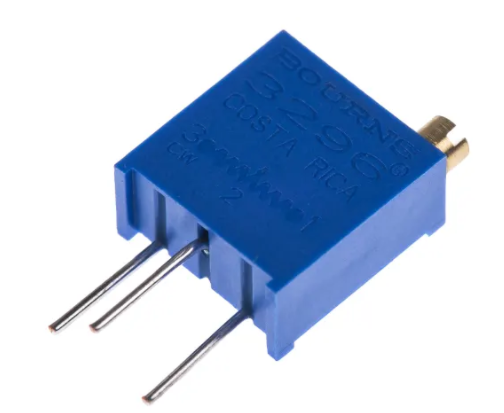

500 ohms multi turn trimmer potentiometer (Y pattern)
View attachment 654291

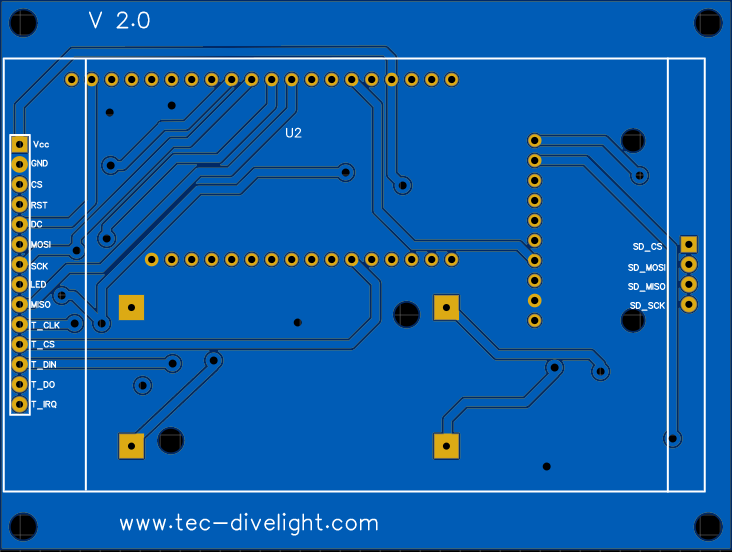

Custom main PCB
View attachment 654292

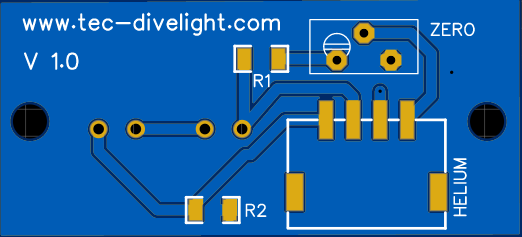

Custom sensor PCB
View attachment 654293

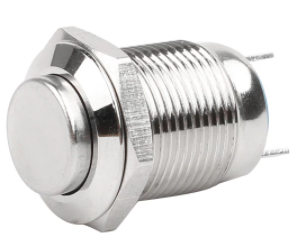

Switch
View attachment 654294

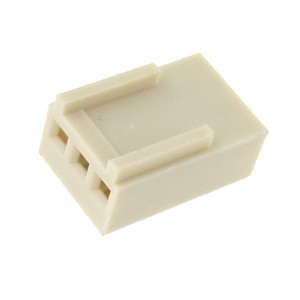

Molex or an appropriate connector and terminals for the O2 cell. For more info see the sensor’s datasheet.
View attachment 654295


Links to resources are for your reference only. I do not have any connection to the owners of the shops I listed. You can find most of these components easily on aliexpress, ebay, bangood…. etc.

pls post here for us the arduino code...and the pcb to make at pcbway.com gerber file pls



[Jarek Andrzejewski]

My experience with combining the oxygen sensor (0-50mV) with the carbon monoxide sensor (0.4-2V) is that they influence each other too much for an independent reliable measurement. But I'd be curious to know how to solve that issue!

Maybe resistor divider on CO input (bringing down original 0.4-2V to ~10-50mV at ADS input) would help?



[kaiserb]

Likely if you are reading against GND you have multiple GNDs affecting the accuracy of the ADC between the 2 input signals. Either tying all your GNDs together or totally separating the power for one of the sensors can solve your issue.

I have a proto built using an ADS 1115, to do differential readings between A1/A2 and a diff between A3/A4. I have had no issues with dual readings but I was using 2 O2 sensors with similar mV ranges.
