Bauer Utilus not building high pressure

Discussion in 'Compressors, Boosters & Blending Systems' started by Scuba_Aaron, Aug 14, 2017.

  1. Scuba_Aaron

    Scuba_Aaron Solo Diver

    # of Dives: 200 - 499
    Location: Des Moines Iowa
    82
    19
    I should clarify as I was able to replace the suction valve but I couldn't replace the discharge valve.

  2. Wookie

    Wookie Curmudgeon Apprentice ScubaBoard Business Sponsor ScubaBoard Supporter

    37,202
    65,379
    You replaced the third stage auction valve. Yes? Now it's time to replace or clean the first stage auction valve. That's the biggie. If it's leaking, you're losing capacity.

  3. Scuba_Aaron

    Scuba_Aaron Solo Diver

    # of Dives: 200 - 499
    Location: Des Moines Iowa
    82
    19

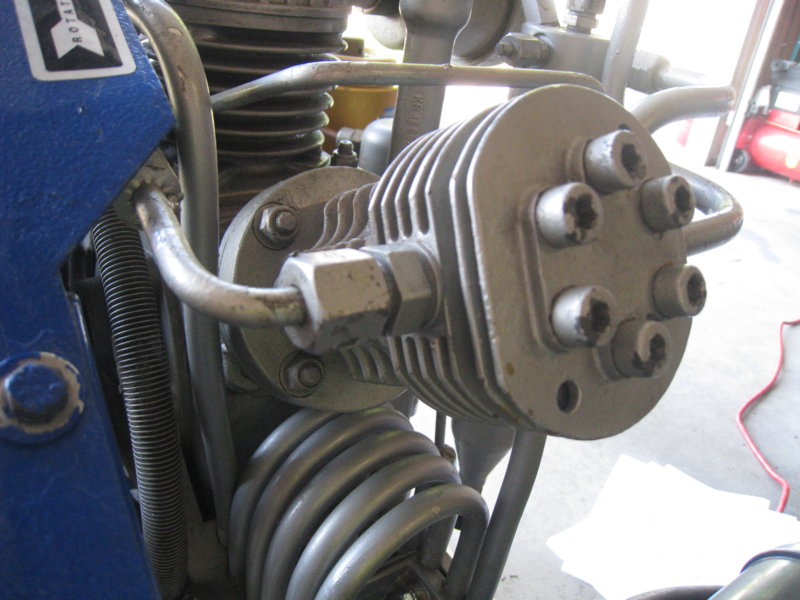

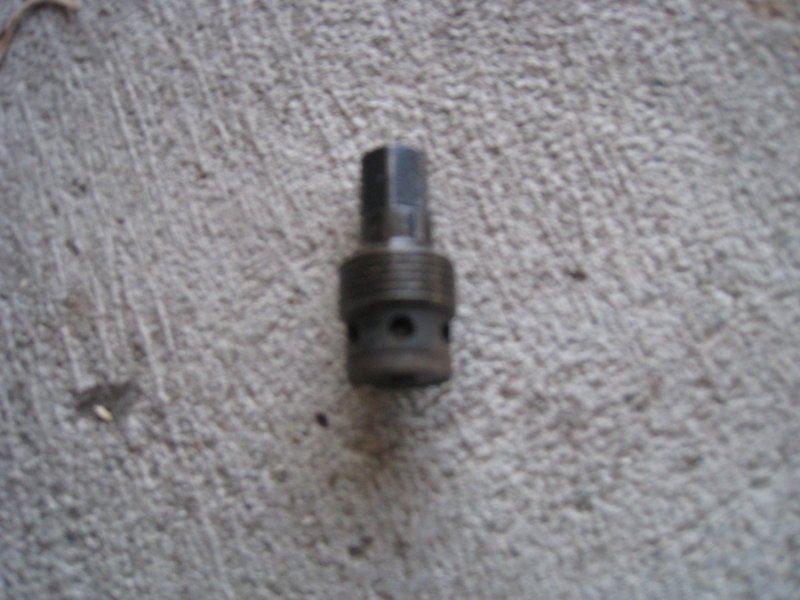

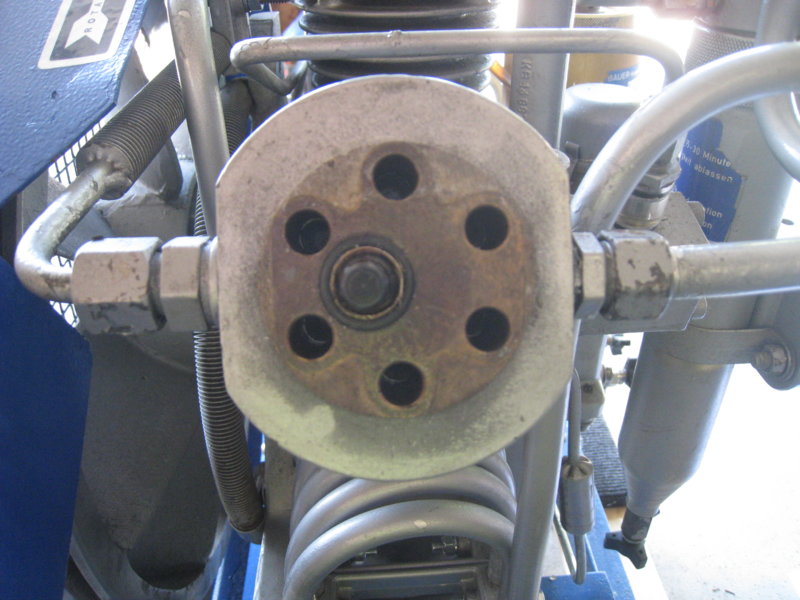

    Below are the images of the 3rd stage, head cap, valve head and threaded discharge valve
    IMG_4677.JPG IMG_4676.JPG IMG_4674.JPG

  4. Scuba_Aaron

    Scuba_Aaron Solo Diver

    # of Dives: 200 - 499
    Location: Des Moines Iowa
    82
    19
    Wookie,
    I replaced the 3rd stage suction valve and I have disassembled the 1st stage for inspection, pictures...

  5. Wookie

    Wookie Curmudgeon Apprentice ScubaBoard Business Sponsor ScubaBoard Supporter

    37,202
    65,379
    It doesn't look terrible. Is there a buildup of carbon on that valve disk? I can't really tell by the picture.

  6. Scuba_Aaron

    Scuba_Aaron Solo Diver

    # of Dives: 200 - 499
    Location: Des Moines Iowa
    82
    19
    No build up and the disk looks in good shape, so I am not sure. With the age of the compressor, it could probably do with a valve replacement.

  7. Wookie

    Wookie Curmudgeon Apprentice ScubaBoard Business Sponsor ScubaBoard Supporter

    37,202
    65,379
    Unless the springs are weak, there is not really a good reason to. Of course, you can't tell it's weak springs until you replace them and that solves the problem....

  8. CraigAClark

    CraigAClark Instructor, Scuba

    # of Dives: I'm a Fish!
    Location: South Florida
    569
    32
    RayfromTX likes this.
  9. Scuba_Aaron

    Scuba_Aaron Solo Diver

    # of Dives: 200 - 499
    Location: Des Moines Iowa
    82
    19
    Wookie,
    I could try cleaning the parts, stretch the springs a little and then test that.

  10. Wookie

    Wookie Curmudgeon Apprentice ScubaBoard Business Sponsor ScubaBoard Supporter

    37,202
    65,379
    Aren't they disc springs? I've never seen that work, but you can give it a try. Valve kits are pretty inexpensive, IIRC.
