Bauer Mako condensate drain
- Thread starter feltonmichael
- Start date
Please register or login
Welcome to ScubaBoard, the world's largest scuba diving community. Registration is not required to read the forums, but we encourage you to join. Joining has its benefits and enables you to participate in the discussions.
Benefits of registering include
- Ability to post and comment on topics and discussions.
- A Free photo gallery to share your dive photos with the world.
- You can make this box go away
Wookie
Proud to be a Chaos Muppet
Staff member
ScubaBoard Business Sponsor
ScubaBoard Supporter
Scuba Instructor
Dm me your email and I’ll send you the tech manual.
The other option is Google “Mako Universal Manual”. The correct and most complete one that comes up on your search is actually labeled “Maco”, but don’t let that throw you off. Chapter 11 I think.
The other option is Google “Mako Universal Manual”. The correct and most complete one that comes up on your search is actually labeled “Maco”, but don’t let that throw you off. Chapter 11 I think.
Wookie
Proud to be a Chaos Muppet
Staff member
ScubaBoard Business Sponsor
ScubaBoard Supporter
Scuba Instructor

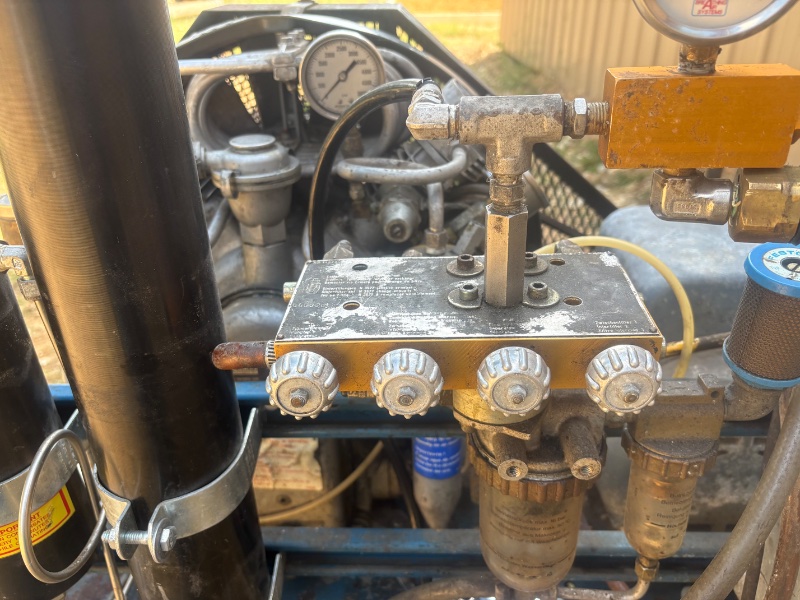

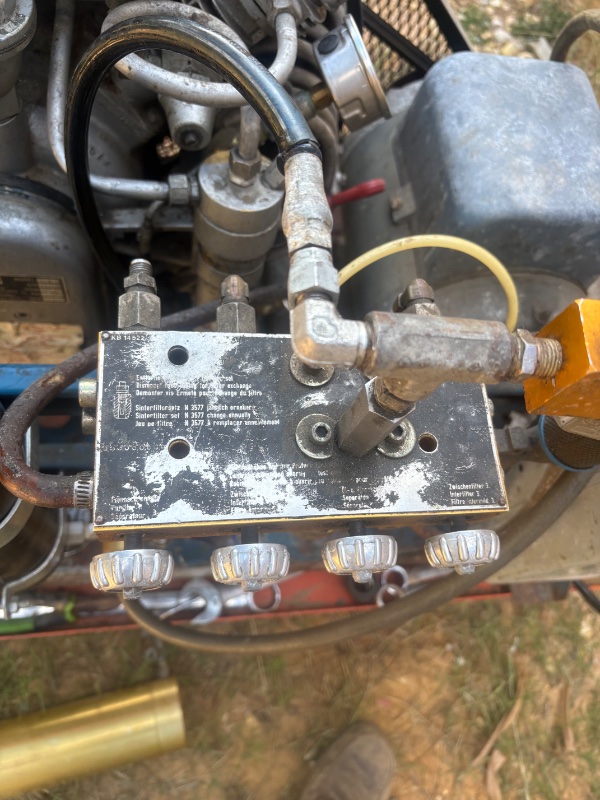

My bad. That’s a manual drain, not an auto drain.
oldairdude
Registered
Well I have good news and bad news... It is a Bauer auto-drain, but a very old one that is known to have issues. I'm pretty sure Jacques Cousteau used one for what its worth.
The main issue that it will be unable to drain on shutdown. It holds all condensate until it starts up again. The reason is that it requires power to drain. It is a normally closed setup, requiring no power to stay closed. The timer starts with a 6 second dump on startup, closes for 15 minutes, repeat repeat until you shut it down or pressure switch does it.
Issues have been with the inlet filters on each drain line, they tend to get restricted with sludge, rust and carbon, etc. to the point they don't pass water. The manual drain knobs would allow you to verify they do in deed still drain, as well as allow you to drain after unit shuts down. The logic is opposite what modern drain system do today. I'm attaching a parts breakdown for you, as well as some basic instructions for the operation. As a collector of vintage compressors, I do have some Bauer repair kits for your model still available, let me know if you think you need to repair it. Good luck and just remember to drain it manually after shutdown.
The main issue that it will be unable to drain on shutdown. It holds all condensate until it starts up again. The reason is that it requires power to drain. It is a normally closed setup, requiring no power to stay closed. The timer starts with a 6 second dump on startup, closes for 15 minutes, repeat repeat until you shut it down or pressure switch does it.
Issues have been with the inlet filters on each drain line, they tend to get restricted with sludge, rust and carbon, etc. to the point they don't pass water. The manual drain knobs would allow you to verify they do in deed still drain, as well as allow you to drain after unit shuts down. The logic is opposite what modern drain system do today. I'm attaching a parts breakdown for you, as well as some basic instructions for the operation. As a collector of vintage compressors, I do have some Bauer repair kits for your model still available, let me know if you think you need to repair it. Good luck and just remember to drain it manually after shutdown.
OP
feltonmichael
New
Thanks both of you for the info, I’ll check it out and get back to you if I have any questions, what are my options for adding a more modern auto drain that won’t break the bank?
define "break the bank"....
There is/was a guy in Australia that was making stuff that had a lower price than OEM, but I don't know if that is a deal anymore.
Since you have some of the components like the manifold block and fittings that all fit up on this compressor, it might be a fun project to convert the drains and controller.
There is/was a guy in Australia that was making stuff that had a lower price than OEM, but I don't know if that is a deal anymore.
Since you have some of the components like the manifold block and fittings that all fit up on this compressor, it might be a fun project to convert the drains and controller.
