revo o rings

Discussion in 'Rebreather Diving' started by Divermikey, May 3, 2019.

  1. Divermikey

    Divermikey Angel Fish

    # of Dives: 500 - 999
    Location: Oregon
    67
    7
    8
    Can anyone tell me the sizes of the user serviceable o rings on a rEvo 3?

  2. -Sven-

    -Sven- Angel Fish

    # of Dives: 1,000 - 2,499
    Location: Halle (Saale), Germany
    9
    2
    3
    I am interested, too.

    -Sven-

  3. W W Meixner

    W W Meixner Rebreather Pilot

    # of Dives: 500 - 999
    Location: Ontario Canada
    667
    444
    63
    DM...

    Contact Jason at Ocean Edge Outfitters...they are the rEvo authorized service center for North America...they will have stock...some parts have purchase restrictions...you should be OK with user serviceable components...

    Best...

    W.

  4. Divermikey

    Divermikey Angel Fish

    # of Dives: 500 - 999
    Location: Oregon
    67
    7
    8
    I am aware of Ocean Edge And Add Helium selling the o rings. I asked if anyone knew the dimensions or sizes of the orings...

  5. W W Meixner

    W W Meixner Rebreather Pilot

    # of Dives: 500 - 999
    Location: Ontario Canada
    667
    444
    63
    DM...

    I understood the question...and I believe I understand your intentions...overall diameter and dimension of the ring is very important...

    Buy the correct ''O'' ring for the specific sub-component...why risk a leak at depth with an ''O'' ring that is close but not correct...or is made of a material or hardness other than specified...for the sake of thinking you're saving a few dollars...

    Cheap ''non spec'' ''O'' rings are like cheap batteries...neither will do you any good...

    Most members will not respond for fear of leading you in a direction you should not be going...

    Best...

    W...

    cathal and OceanEyes like this.
  6. Doby45

    Doby45 Do I have something in my teeth?

    1,811
    1,056
    113
    An o-ring is an o-ring. There is no VOODOO that Revo owns over an o-ring. The key here is to get the correct o-ring first and then use it as the standard to buy them in bulk. Make sure you maintain correct size, thickness and hardness. Other than that, the only way an o-ring not sold by Add Helium for a Revo is "cheap" is in cost, not quality.

    Divermikey likes this.
  7. broncobowsher

    broncobowsher Solo Diver

    984
    522
    93
    There are good O-rings that are made to tight quality control standards. There are cheap O-rings that have sloppy quality control. Correct durometer but is the elasticity correct? How much flashing do you have to shave off the seam? The O-ring kit as about the cheapest spare parts you can buy for a Revo. The O-rings last just about forever as well. It's not like they are Oxygen cells that do cost an arm and a leg and do need frequent replacement.

    W W Meixner and cathal like this.
  8. cathal

    cathal Nassau Grouper

    # of Dives: 500 - 999
    Location: Ireland
    161
    72
    28
    Spot on. When it comes to spare parts for rebreather's, it can be easy to forget that its a part for a life support system, your life support system. My 2c, all spare parts for rebreather's should be viewed in this manner.

    W W Meixner likes this.
  9. Dsix36

    Dsix36 Solo Diver

    1,417
    929
    113

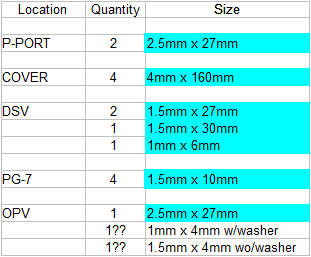

    This is for a rEvo II. I do not know the loop hose connections for the 3 so just disregard the p-port ones.


    OceanEyes and stuartv like this.
  10. Divermikey

    Divermikey Angel Fish

    # of Dives: 500 - 999
    Location: Oregon
    67
    7
    8
    Thanks Don!
