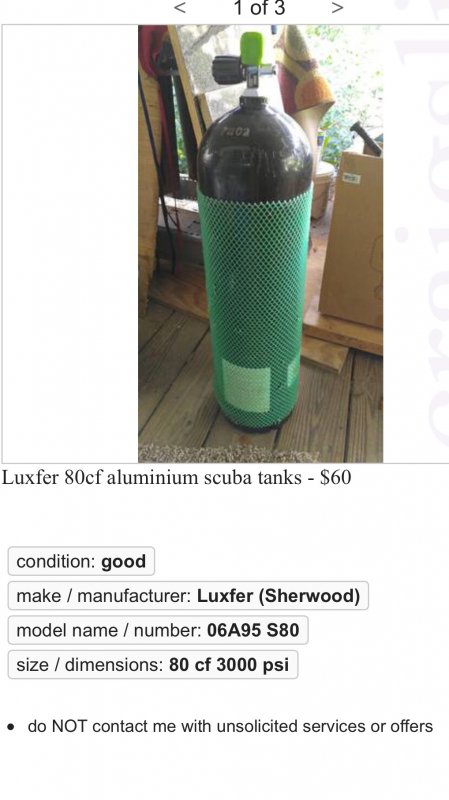

so the A should be an up arrow, but that tank was likely born in 06/1995. I wouldn't buy it due to the age alone, but that's just me. It won't be the bad alloy, I just prefer to have AL80's with less than 10 years of use on them when I buy them, whether it is sitting or being used, they stress differently than steel.
Regarding the steel. You will have to determine what it actually is in order to determine your turn pressures. Read up on Rock Bottom Calculations and you will realize that the turn is based on cubic footage. I'm going to assume that the 90 is actually a 95 as that is a "normal" tank size, so with that it is 95cf at 2640+10%=2640psi. This is how all of the low pressure tanks are rated.
Based on that, your buddy will have 77.4cf/3000psi, and you will have 95cf/2640psi. Tank factors are 2.6cf/100psi for your buddy and 3.6cf/100psi for you. For every 250psi he burns, you will burn 100psi *nominal numbers* assuming you have the same sac rates. Without knowing the SAC rates of each diver, it is impossible to determine your turn pressures when calculating rock bottom. You can approximate.
If you were doing linear penetration for tech diving which is rule of thirds, then you have to calculate the dissimilar tank volumes. In this case, 77.4/3=25.8cf=>1000psi. Easy enough for your buddy. For you, you have to figure out at what pressure you will have used 25.8 cf, in the case of a LP95, that is ~700psi, so with a fill of 2600psi, you would have to turn at 1900psi, when your normal "third" would have been 1800psi.
Regarding the steel. You will have to determine what it actually is in order to determine your turn pressures. Read up on Rock Bottom Calculations and you will realize that the turn is based on cubic footage. I'm going to assume that the 90 is actually a 95 as that is a "normal" tank size, so with that it is 95cf at 2640+10%=2640psi. This is how all of the low pressure tanks are rated.
Based on that, your buddy will have 77.4cf/3000psi, and you will have 95cf/2640psi. Tank factors are 2.6cf/100psi for your buddy and 3.6cf/100psi for you. For every 250psi he burns, you will burn 100psi *nominal numbers* assuming you have the same sac rates. Without knowing the SAC rates of each diver, it is impossible to determine your turn pressures when calculating rock bottom. You can approximate.
If you were doing linear penetration for tech diving which is rule of thirds, then you have to calculate the dissimilar tank volumes. In this case, 77.4/3=25.8cf=>1000psi. Easy enough for your buddy. For you, you have to figure out at what pressure you will have used 25.8 cf, in the case of a LP95, that is ~700psi, so with a fill of 2600psi, you would have to turn at 1900psi, when your normal "third" would have been 1800psi.
