older Bauer ik120II ??

[nellythe1th]

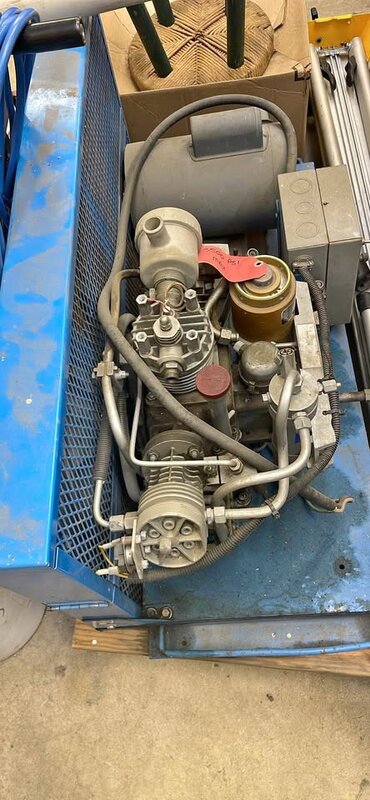

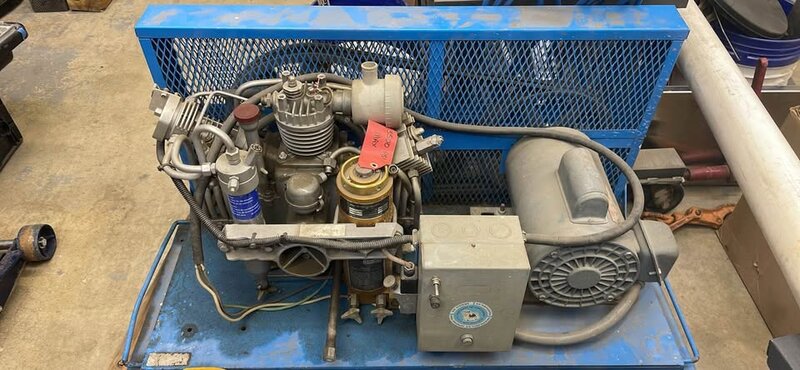

Good afternoon, everyone. Can you help me identify an older Bauer air compressor?

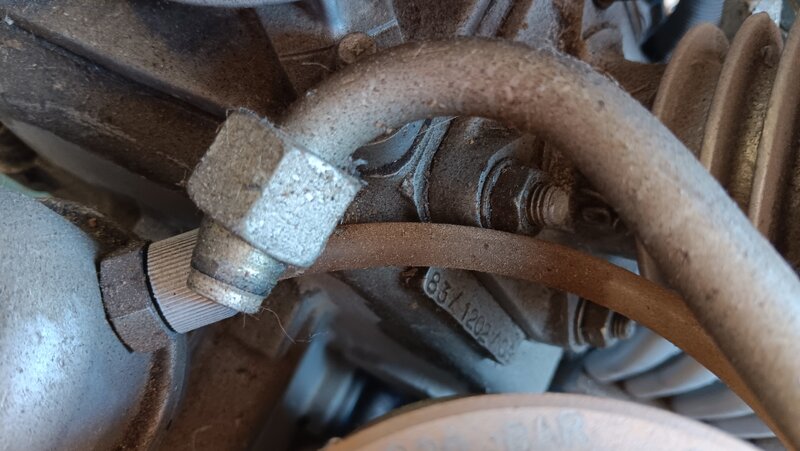

On the block, it says 83/1202/09. I'm assuming it's an IK120LL, based on what I can see from some online manuals, but I'm hoping you can all confirm.

It will need to be rebuilt as it currently sits, as it only builds to 2700 and started making noises, and has not been run since.

So my question is this.

Is this worth rebuilding?

They only want 500

R/



[windyairman]

No its not a ik its a older version k series
More photos show first stage head please. then we can help.



[nellythe1th]



[nellythe1th]

again, thank you for taking a look

R/



[windyairman]

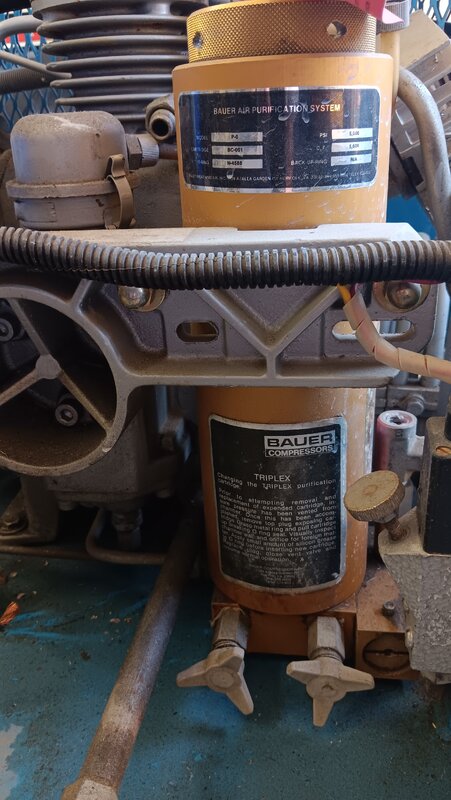

Its a Bauer Utilus about 3 to 3.5 cfm. The filter system looks very old and at end of life.
Look at bauer germany web site.Spare parts and manuals.Then you can find parts list for your version.



[nellythe1th]

Yes, it looks like a T130-10/1 Utilus, according to the parts list.

Windyairman, is this a good starter compressor? if this thing was running making 3500 psi what would this be worth?
