Nitrox on The Go?

[o-ren-ishii]

A bit late to the party but this is my setup. It's a Bauer Junior 2 from 2003. Does 100L/min of nitrox on 230v 1 phase. So not the fastest but about 20mins for a 80cuft stage, which is not bad with a beer after some cavedives

I've increased the frame height slightly so the stick would fit in the. Some parts are 3d printed to make it a bit leaner. I've also added a couple of magnet valves to the condensate drain. I found waiting around to flush it each 10~15 mins a pain in the ass.



[rob.mwpropane]

A bit late to the party but this is my setup. It's a Bauer Junior 2 from 2003. Does 100L/min of nitrox on 230v 1 phase. So not the fastest but about 20mins for a 80cuft stage, which is not bad with a beer after some cavedives

I've increased the frame height slightly so the stick would fit in the. Some parts are 3d printed to make it a bit leaner. I've also added a couple of magnet valves to the condensate drain. I found waiting around to flush it each 10~15 mins a pain in the ass.

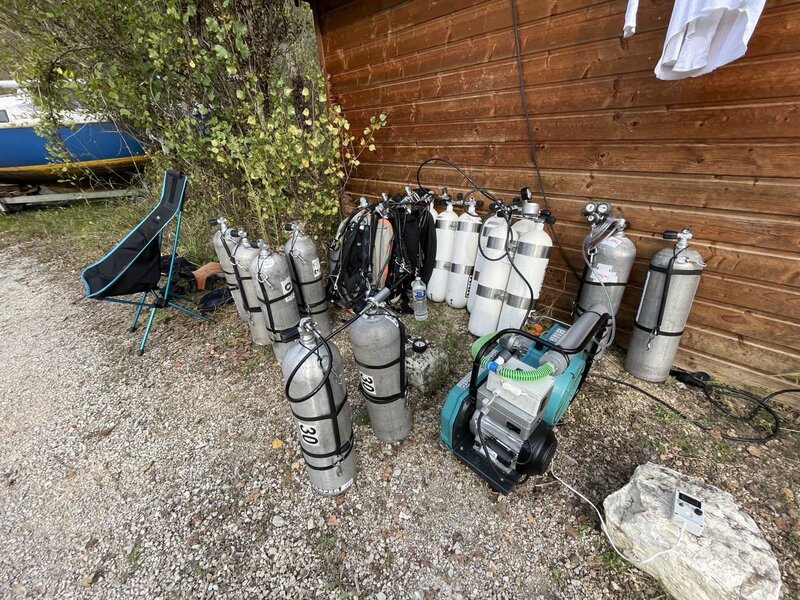

View attachment 687515

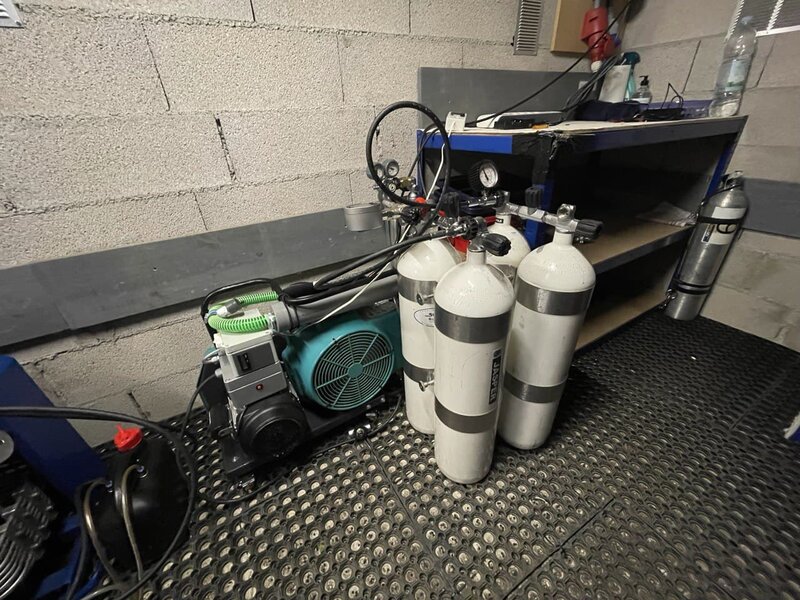

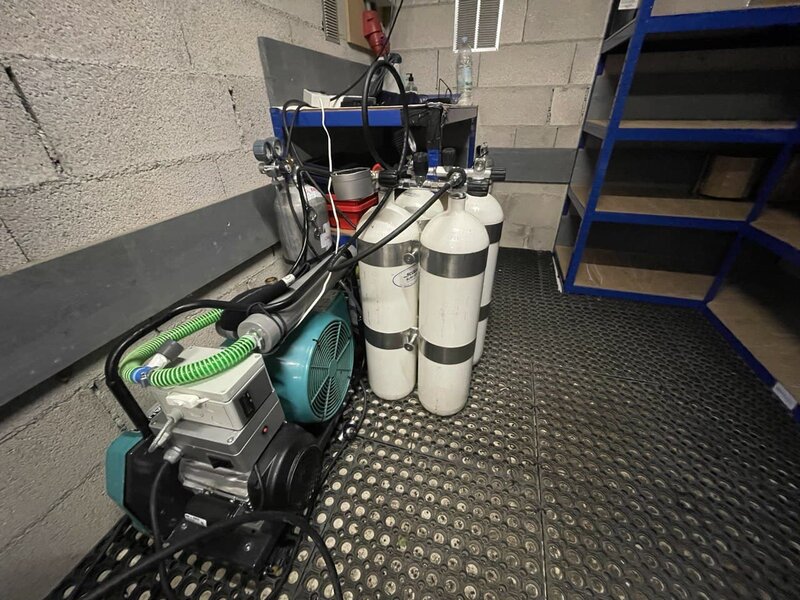

View attachment 687516View attachment 687517View attachment 687518

Nice clean setup. I'm getting there.
