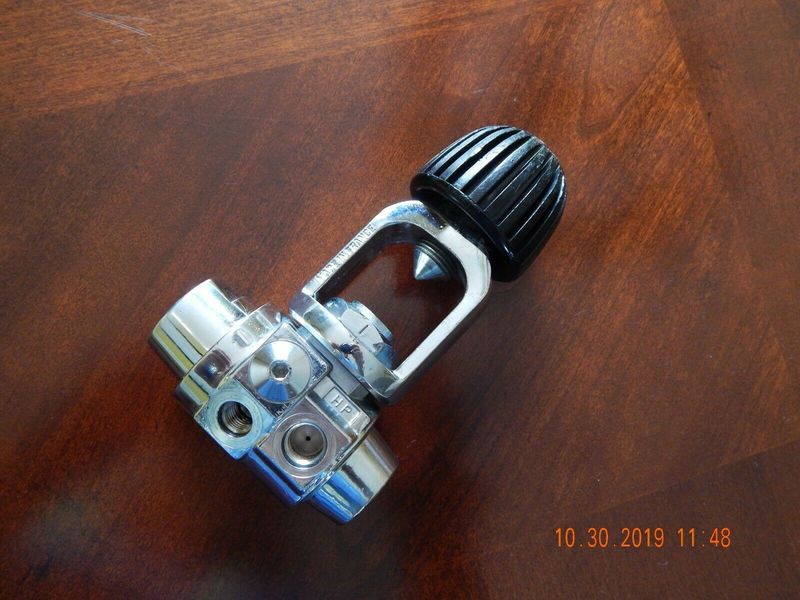

Help ID'ing First Stage Regulator

Discussion in 'Vintage Equipment Diving' started by dead dog, Dec 31, 2019.

  1. dead dog

    dead dog Solo Diver

    # of Dives: 2,500 - 4,999
    Location: SoCal via Pittsburgh, Pa.
    475
    129
    43


  2. Kupu

    Kupu Instructor, Scuba

    # of Dives: 1,000 - 2,499
    Location: NC
    667
    149
    43
    Scroll down to see Spiro Supra XL 1987. First stage looks like a match?

    The made in France stamp on the yoke and yoke screw looking like US Divers/Aqualung helped with the search.

    A bit of trivia from the website...
    "In 1998, probably after the death of Commander Cousteau's Aqualung brand decided to put all the products manufactured by LA SPIROTECHNIQUE, US DIVERS, TECHNISUB and SEA QUEST under the same name, AQUALUNG"

  3. StefinSB

    StefinSB Manta Ray

    # of Dives: 200 - 499
    Location: Santa Barbara, CA
    705
    463
    63
    That is funny. A few hours ago a friend in socal found one and I wondered what it was

  4. dead dog

    dead dog Solo Diver

    # of Dives: 2,500 - 4,999
    Location: SoCal via Pittsburgh, Pa.
    475
    129
    43
    Thank you, Kupu.

    What caught my eye was the redundancy, having the same outlets on each side.

    Two HP's and four MP's total. What were they thinking of building a first-stage like this?

    It was like two first-stages built into a single-stage regulator.

    On the other side of the yoke is stamped 3000psi.

  5. jale

    jale Barracuda

    228
    80
    28
    Maybe is indeed a "twin regulator", one body for two first stages.
    Here is a modern version:
    V-TWIN - Beuchat

  6. greeniguana

    greeniguana Nassau Grouper

    90
    78
    18
    Interesting. It looks like the cousin of my circa 1991 XL model.

    I still use it, although piston replacement parts are almost obsolete. I would like to find a DIN conversion for it.....


    Attached Files:

  7. jadairiii

    jadairiii Solo Diver

    426
    380
    63
    So that is what happened to the second generation Seapro twin first stage from the late 80's.

  8. regulator bj

    regulator bj Barracuda

    # of Dives:
    Location: devon u.k.
    295
    83
    28
    Hi DD Your reg is a "Supra XL First version April 1987 Its a compensated membrane with two outputs HP and 4 LP outputs Only a few thousand were produced certainly one to keep and endeavour to get wet, differs from the second Supra model 1988-89 being very square. Capture.PNG Capture1.PNG

    couv likes this.
  9. Mike Ovanessian

    Mike Ovanessian Garibaldi

    1
    0
    1
    That reg was marketed in the US as the 1st Generation US Divers SEA that first appeared in their 1988 catalog. In 1989, the body was redesigned to what they used for many years thereafter.

  10. eelpout

    eelpout Instructor, Scuba

    # of Dives: I'm a Fish!
    Location: WI
    378
    37
    28
    image014.jpg The first Generation Seaquest Regulators had it as a First stage too.
