Info "Certified by PST" ASME HP cascade cylinders (tanks) leak

[Ty Hamby]

Got my 924 90A Viton o-ring's. Tomarrow I finish this project. The 224 were slightly oversized and pushed out when I tried to seal. Was able to get it to work after a couple attempts but opted to purchase the 924 as @oldairdude suggested.



[Ty Hamby]

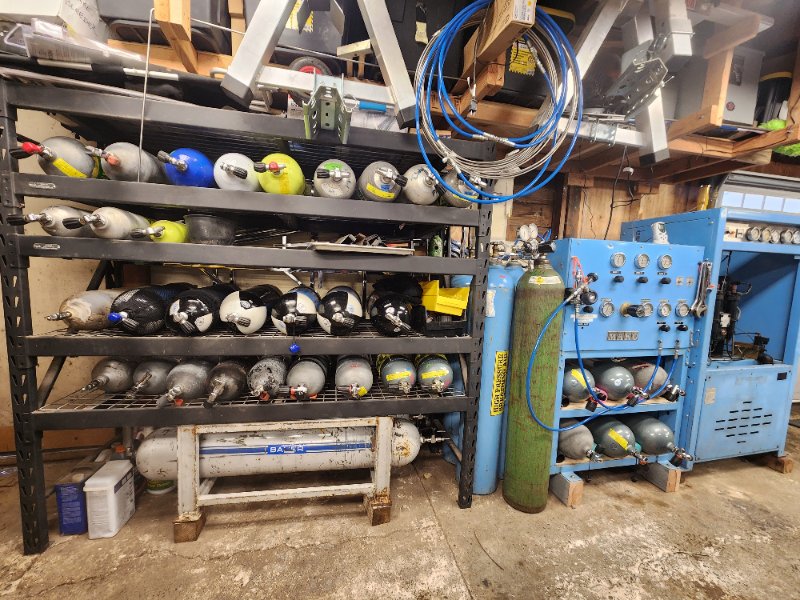

Super stoked to finally get all my cascade tanks plumbed in at the same time. My ASME tanks are no longer leaking. They are together on bank1 the other 4)444cf 4500 cylinders are paired up on Bank2 and Bank3. The 924-90A o-rings were 100% correct for the ASME cylinders. Tomarrow i begin building my tank tumbler with Amazon pieces parts. Fingers crossed for that project. I will update it on the DIY tank tumbler thread.



[Tracy]

Super stoked to finally get all my cascade tanks plumbed in at the same time. My ASME tanks are no longer leaking. They are together on bank1 the other 4)444cf 4500 cylinders are paired up on Bank2 and Bank3. The 924-90A o-rings were 100% correct for the ASME cylinders. Tomarrow i begin building my tank tumbler with Amazon pieces parts. Fingers crossed for that project. I will update it on the DIY tank tumbler thread. View attachment 881695

Would you like 10 more of those AMSE's for bank one? I have a pile of them out in the yard.



[Ty Hamby]

Would you like 10 more of those AMSE's for bank one? I have a pile of them out in the yard.

Thank you. I am good. This is more than enough cascade for one weekend diver.



[iain/hsm]

Heck I go away for a couple of days and by the time I get back it's all done and sorted.
And we only got to discuss one end of the thing.



[Ty Hamby]

Heck I go away for a couple of days and by the time I get back it's all done and sorted.
And we only got to discuss one end of the thing.

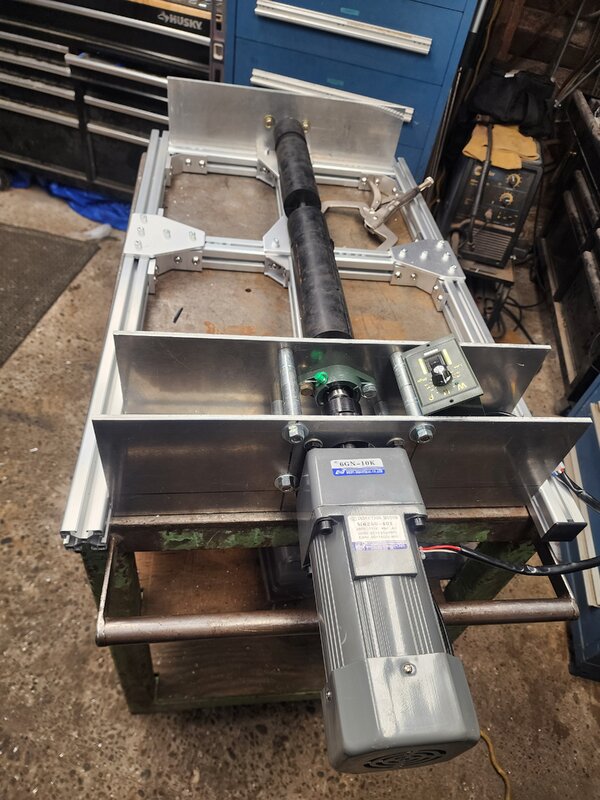

I was getting ready to send out a search party to check on you. Its not like you to sit one out. Thank you again for sharing your knowledge. My next project should be finished today. Im calling it the "costs more than i thought" tank tumbler build.



[iain/hsm]

I was getting ready to send out a search party to check on you. Its not like you to sit one out.

Hahah All I can see now is 40/40 profile nothing else matters and the world is our oyster.
Now if you happen to come across any of this little profile beauty let me know.
I'm running short in the skunk works.



[cgblake]

I was getting ready to send out a search party to check on you. Its not like you to sit one out. Thank you again for sharing your knowledge. My next project should be finished today. Im calling it the "costs more than i thought" tank tumbler build.
View attachment 882078

Oh man I love building with 40x40, but the price is not always fun.
I’ve only ever VIP’d bottles but this thread is a super fun read.
Thanks for sharing!



[Ty Hamby]

Oh man I love building with 40x40, but the price is not always fun.
I’ve only ever VIP’d bottles but this thread is a super fun read.
Thanks for sharing!

I got this far today. I need to slot the center axle pillow blocks to control the cylinders from crawling up and down the centerline. I also need to mount the control box, and add bumper where the bottom or neck of the tank will ride when elevated to 30 degres.



[Ty Hamby]

Hahah All I can see now is 40/40 profile nothing else matters and the world is our oyster.
Now if you happen to come across any of this little profile beauty let me know.
I'm running short in the skunk works.

Just dumped my pockets out onto the workbench. No HSM exclusive top secret diagonal profile extrusion to be found. I will keep my eye out for you.
