Hi, I thought I saw a BCD advertised for just the scuba tank. Now my searches only lead to jacket BCDs for scuba.

Is a BCD used, for example, on a heavy steel second stage tank?

Thanks!

Hi, I thought I saw a BCD advertised for just the scuba tank. Now my searches only lead to jacket BCDs for scuba.

Is a BCD used, for example, on a heavy steel second stage tank?

Thanks!
No, and that is why stage tanks are not steel. if possible.

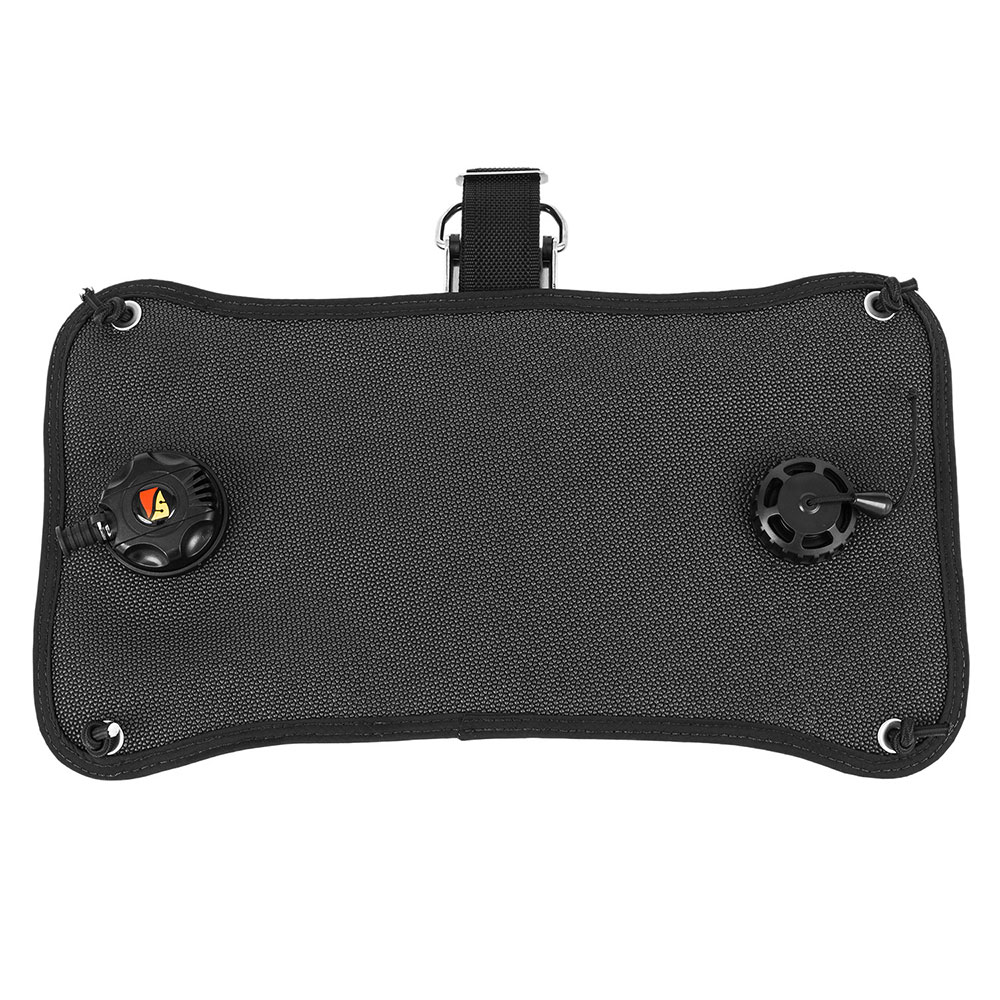

Dive Rite option is pricey !

It should be relatively easy to DIY using a small closed DSMB, camping water bladder, or a modified camping air pillow with an OPV and tube inflator.

Dive Rite option is pricey !

It should be relatively easy to DIY using a small closed DSMB, camping water bladder, or a modified camping air pillow with an OPV and tube inflator.

This whole thing came up before ... Dive Rite No Mount Tank BC question


My take on the DIY at the time ...
I'm gonna go with this (below) and a couple old cam bands (or stage bands if the tank is rigged that way) as worth a try:



Choke the top of the SS under the upper band to keep it from flopping. Bring it down and under the lower band.
Fold the sausage up and attach the "bottom" at the neck using the d-ring.

Probably not enough for a water heater, but I imagine it would certainly handle a neutral(ly weighted) AL80 since you are only talking about about 6lbs negative max.

I'm guessing on the specs from similar items since it is not listed , but an An 18" long, 4" diameter cylinder is about 226ci, a gallon is 230ci - CEfGW (Close enough ...)
Gallon of water is about 8lbs so you have about 2lbs of buoyancy for the reg.

No push-button inflator, but easy enough to add a BC hose to the onboard reg for push-on-filling and it has an OPV for filling or surfacing safety.

Ghetto dive engineering.
