Backscatter MF2 and snoot dimensions

[shinshin]

Would anyone be able to measure the inner diameter of the snoot where it attaches to the strobe and the outer diameter of the MF2 strobe.

I am trying to DIY a 3d printed adaptor for the optical snoot to other strrobes



[fisheater]

The ID of the Optical Snoot is 56.2 mm. No: it's not a perfect circle. There are 4 wide and shallow 'notches." From "notch" to "notch" is 57.4 mm. Also, the collar of the snoot is a soft rubber-like material that flexes and holds onto the Mini Flash 2.

The OD of the Mini Flash 2 is 55.3 and the far end and widens to 58.9 mm at the near end of the collar, which is 32.3 mm away from the end, with two thin "notches" along the way.



[shinshin]

The ID of the Optical Snoot is 56.2 mm. No: it's not a perfect circle. There are 4 wide and shallow 'notches." From "notch" to "notch" is 57.4 mm. Also, the collar of the snoot is a soft rubber-like material that flexes and holds onto the Mini Flash 2.

The OD of the Mini Flash 2 is 55.3 and the far end and widens to 58.9 mm at the near end of the collar, which is 32.3 mm away from the end, with two thin "notches" along the way.

Do you have picture of the inside of the snoot?



[fisheater]

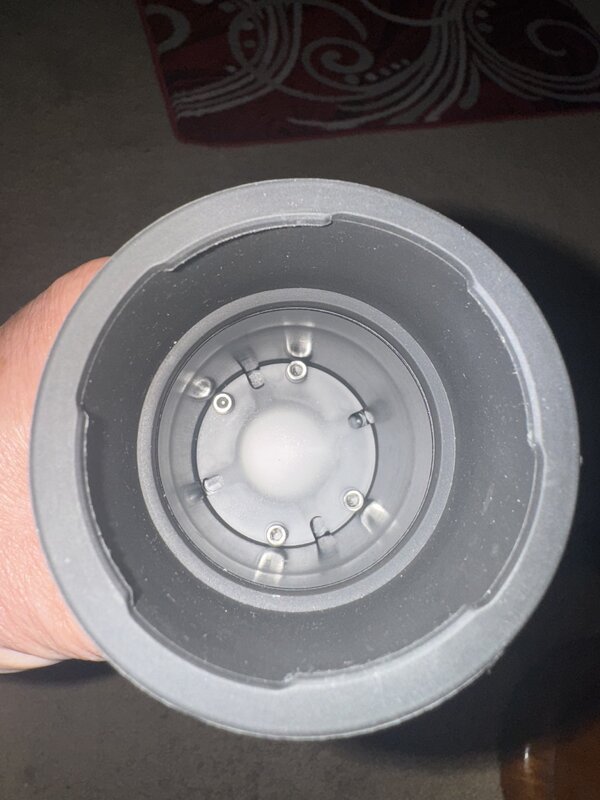

Do you have picture of the inside of the snoot?

Here you go.
