The oring inside inflator hose QD is not in AS568?

[nohappy]

Hi guys,

I've been looking up the specific size of the oring inside inflator hose QD side. I couldn't find a size chart that mentioned it. I took off mine from my QD and measure that and fount out the size of it is 7.5*1.5. So that oring is not belong to AS568?



[guruboy]

It’s 011



[nohappy]

@guruboy
Yes, I tried to match either 010 or 011 and found that they don't match. Does that mean that I have not standard QD?



[Zef]

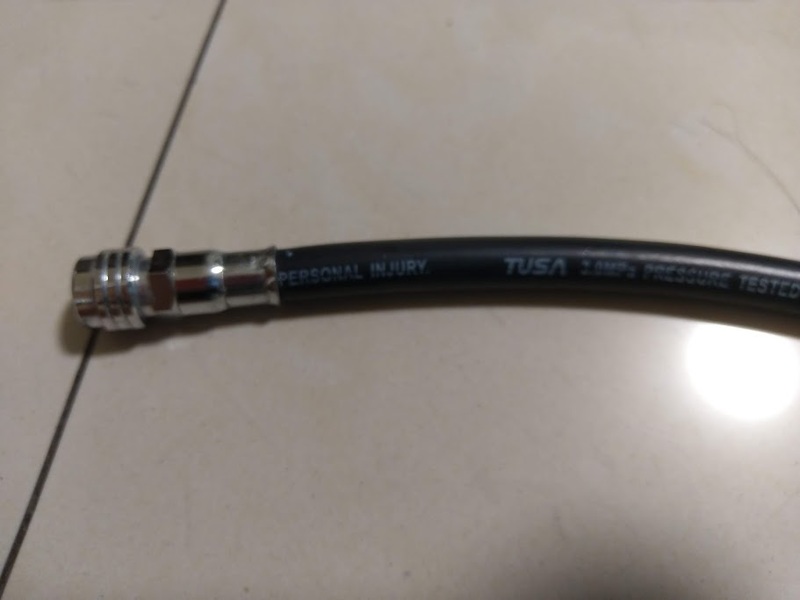

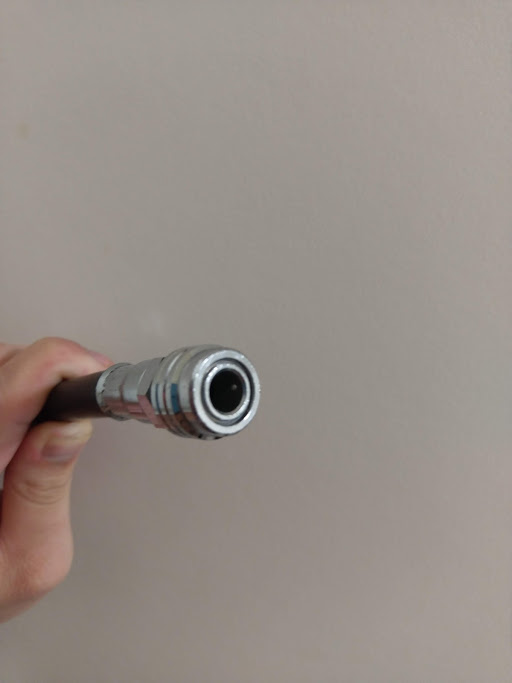

Post a Pic of your inflator hose and the QD end.

-Z



[Zef]

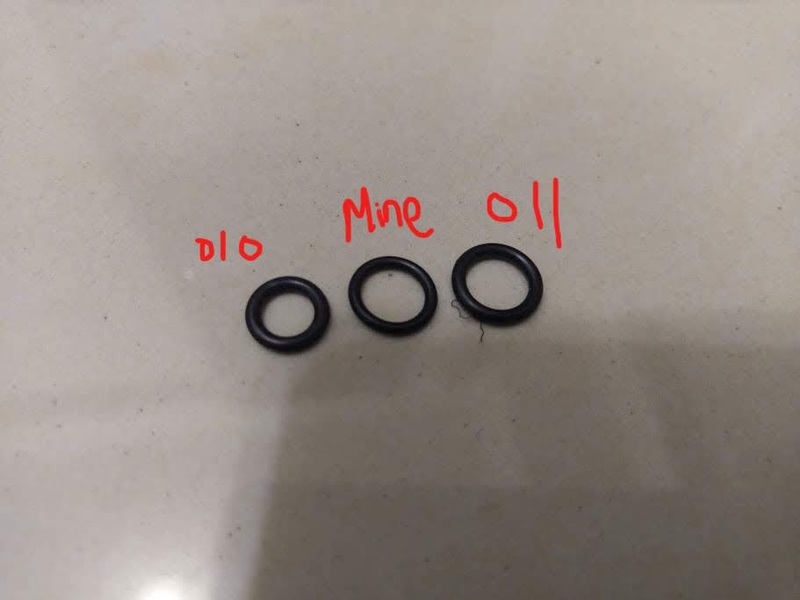

Can you also post a Pic with your o-ring next to a 010 o-ring?

-Z



[Scubagaskets]

Is the 610 oring. Follow this link L.P. Inflator Hose Bull clip O-rings-610



[nohappy]

1. So does that mean some QD using 610 which is not in AS568?

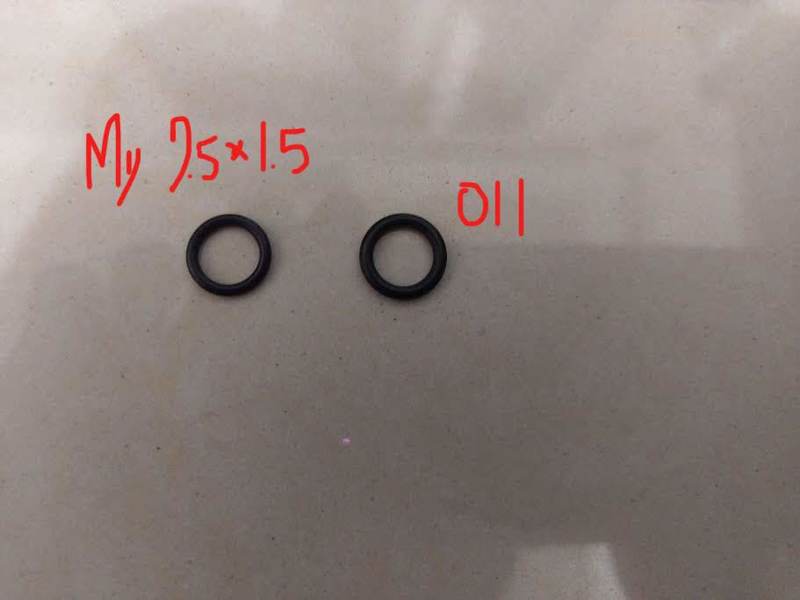

2. I bought mine from local oring shop, I'm sure it is 7.5x1.5 (But I don't know if that does not belong to AS568, or mine is a special case)



[guruboy]

It’s not an exact science. Maybe someone used a metric one instead.



[nohappy]

@guruboy do you mean that I can replace it with a 011 without a problem?



[guruboy]

Yes
