System layout question

[BigRed96]

Compressor ~NRV~Safety Valve~Seperator/Filter tower combo~PMV~fill whip

I’m working on putting a small compressor together and wanted to check and see if my layout is good to go.



[Curious_George]

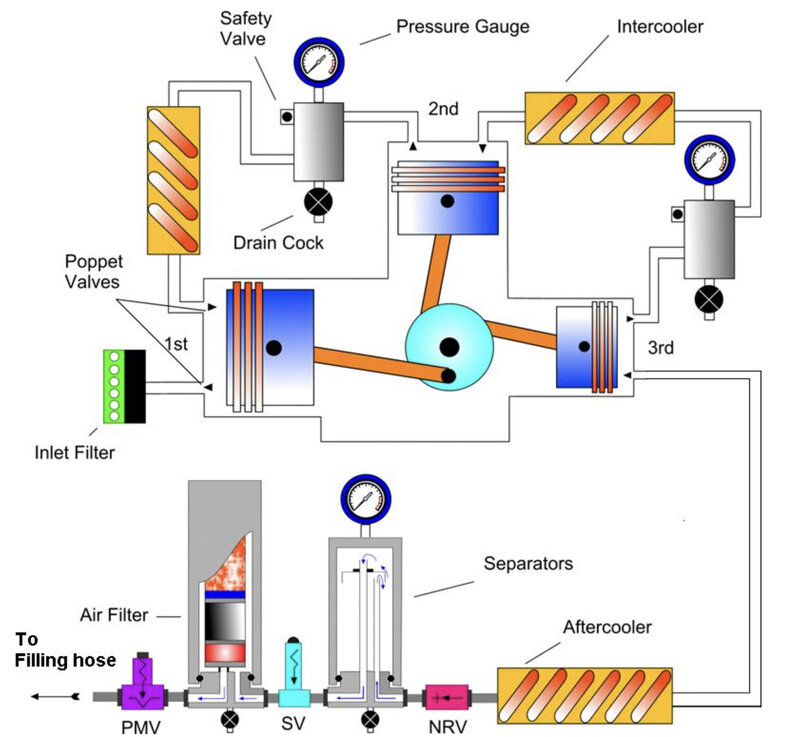

I can’t read your writing. This is the correct layout. See below - credit back to this website.



[BigRed96]

I can’t read your writing. This is the correct layout. See below - credit back to this website.

View attachment 724329

My layout is the same as that as it’s what I modeled mine after except for the location of the safety valve. The way my filter/separator is constructed I can’t put the SV between them.



[windyairman]

lets have a photo of filter/separator you plan to use
I can see no reason to put nrv in this position



[BigRed96]



[windyairman]

thanks for photo
you have 2 filter stacks so now you want a separator unit.



[Couv]

thanks for photo
you have 2 filter stacks so now you want a separator unit.

The unit on the right (upstream) is a moisture separator.



[BigRed96]

The unit on the right (upstream) is a moisture separator.

Yes Sir. Any chance you can offer any knowledge up as far as my component placement goes? I’m on a limited budget and just want to get the right stuff the first time.



[Couv]

There are a lot of folks here with more experience and knowledge than me. However, I don't see any reason why placing the components in the order you mentioned in the OP would not work. Basically, you want the SV downstream of the NRV and upstream of the PMV.

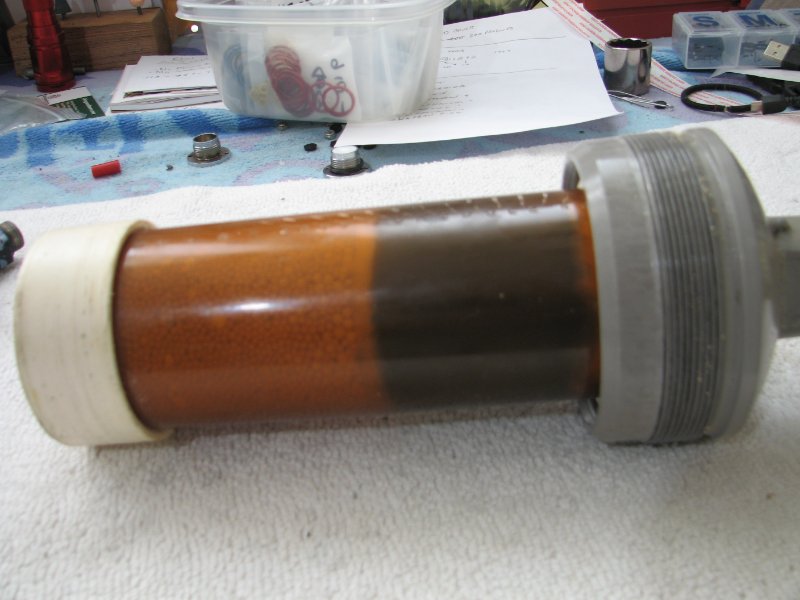

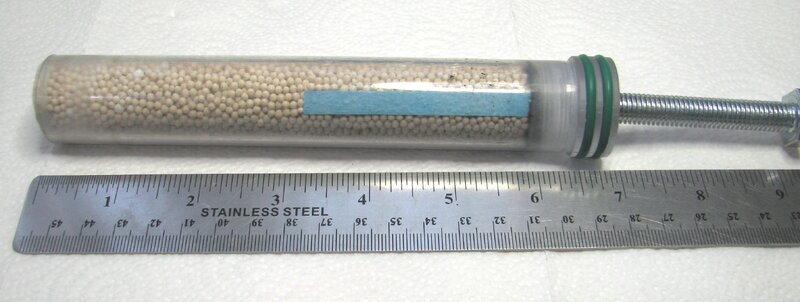

I have a similar setup to the one you have pictured. The moisture separator does a pretty impressive job as I never see any moisture coming out of the main filter. I will say the main filter is pretty small though, but I was lucky in that my compressor came with a larger filter tower. I removed the AC from the small filter and packed the cartridge with MS only.



[BigRed96]

There are a lot of folks here with more experience and knowledge than me. However, I don't see any reason why placing the components in the order you mentioned in the OP would not work. Basically, you want the SV downstream of the NRV and upstream of the PMV.

I have a similar setup to the one you have pictured. The moisture separator does a pretty impressive job as I never see any moisture coming out of the main filter. I will say the main filter is pretty small though, but I was lucky in that my compressor came with a larger filter tower. I removed the AC from the small filter and packed the cartridge with MS only.

View attachment 725550View attachment 725551

Thank you Sir for the information. I sincerely appreciate it!
