Scubapro MK10?

[Mako1975]

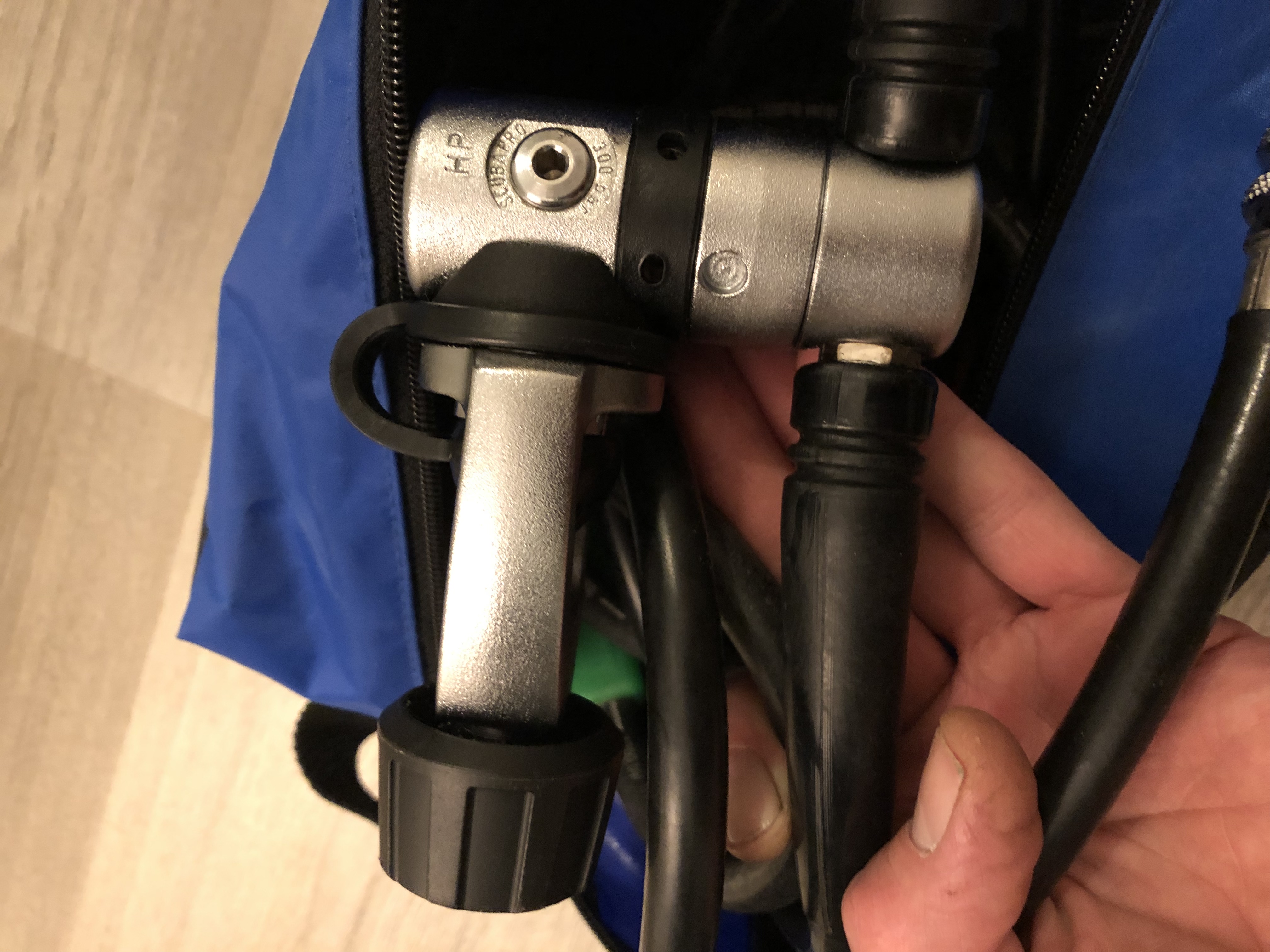

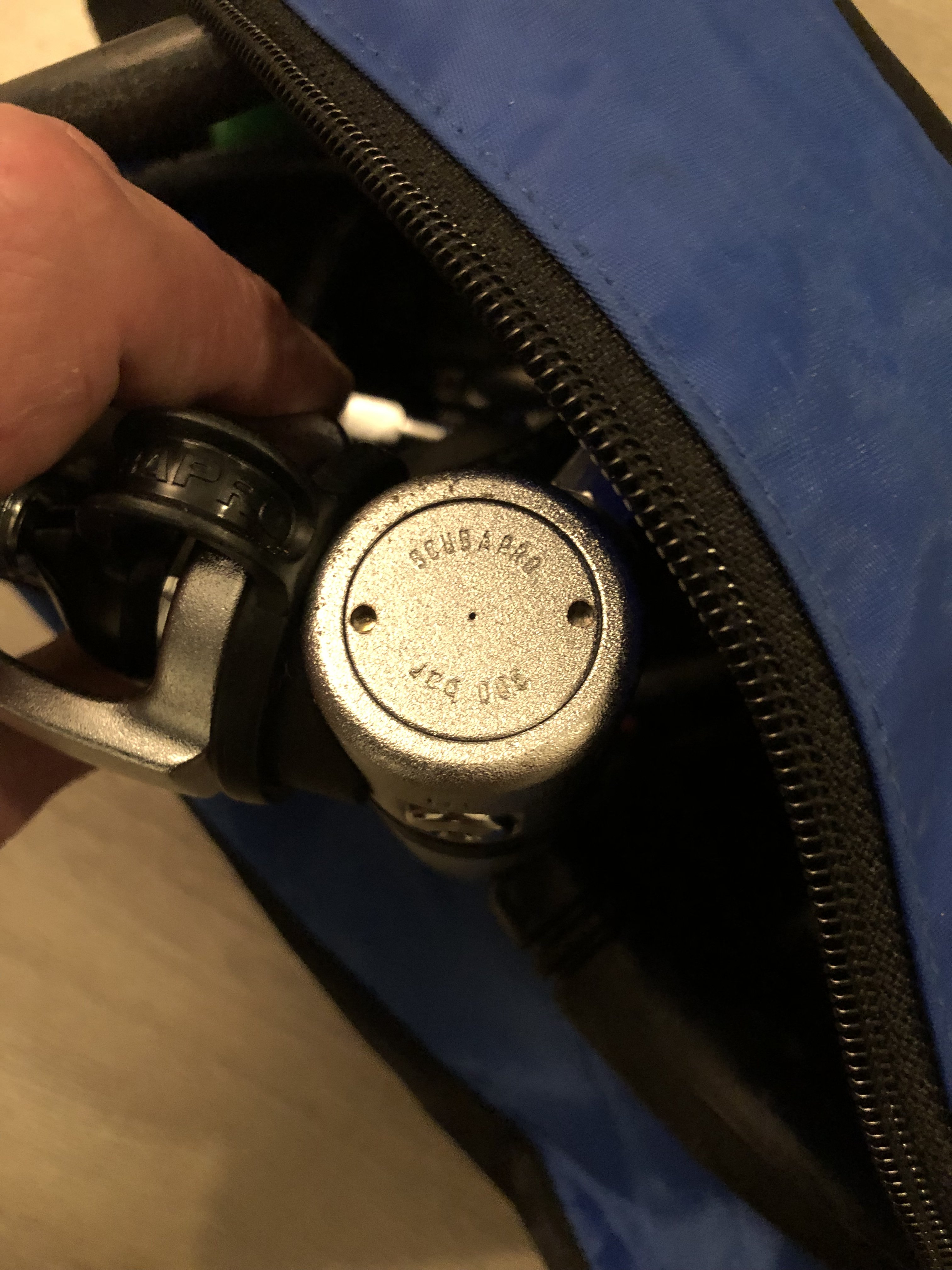

Can someone tell my what type of first stage I have here?

C8080D0D-5092-4447-B3FB-9C886FA0516D

• Mako1975
• Jan 26, 2019

B6B3BAFF-B2E2-4C40-AB1D-69F402385AA6

• Mako1975
• Jan 26, 2019



[rhwestfall]

I'm thinking MK-15



[cerich]

I'm thinking MK-15

i'm thinking you are correct



[Mako1975]

Thanks guys!

Any suggestions on wher to find a service manual.



[bamafan]

I agree looks like a mk15



[Andrew Dawson]

There are lots of threads on the MK15 service manuals...but...I am new here and want to help:

https://www.frogkick.dk/manuals/scubapro/Schematics/1. Stage/

http://www.philsdiving.com/scuba-diving-equipment/scubapro/scubaprodownloads/#first stage



[Mako1975]

I just got back from Canada where i had the opportunity to meet Alac Peirce, for the people who don’t know him...google his name. I had the first stage with mee, and it seems to be a MK10 instead of a MK15. He got me the correct servicekit and a lot of information and old Scuba stories.



[rsingler]

It's a Mk10+
The satin seat carrier is the key.
The black seat is the same as the current Mk25.



[Mako1975]

It is indeed, I found the parts list

http://www.philsdiving.com/download/752/



[rhwestfall]

Yeah, absolutely a 10+. The satin body and limited picture was what made me think 15... That piston shaft and the seat is a dead giveaway.

OP - keep in mind, after you rebuild it, the lock-up of a 10+ is notoriously "mushy".
