Hi I have purchased an apeks XL4 ocea recently.

Before taking delivery of the product I had requested them to adjust the regulator for first dive free flow and perform a bench test.

They have done so and shipped my product to me.

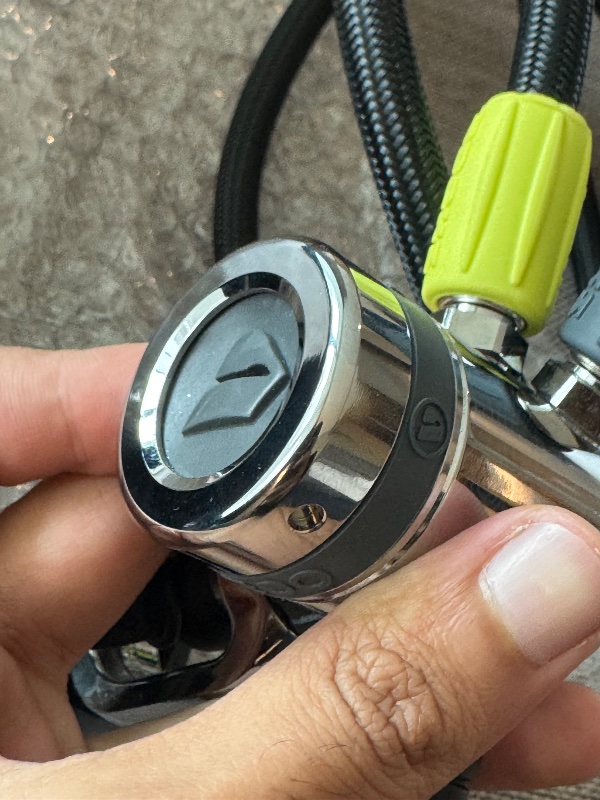

Upon receiving it I noticed that the rubber environment seal on the first stage appears pressed inside on one side of it.

Upon enquiring about it the service technician has replied stating the following: "I am the Apeks/Aqualung/Tecline Regulator Technician Trainer here, when the regulator is serviced correctly we press down the environmental seal as per Apeks servicing standards, if the seal is popping up then it indicates that there may be a leak in your 1st stage o-rings".

I am a bit concerned diving with this regulator unless I have some proper clarity about this as everywhere online it says that this is not right.

Can someone take a look at the following image and let me know about this ?


Attachments

  • IMG_1810.jpeg
    182.3 KB · Views: 24
That’s a good thing actually, the environmental seal should be at a „vacuum“ so that it responds instantly to ambient pressure
The “bad” variant of this case if you have a bubble

That is the correct way for it to be installed. When you put the reg on a tank and pressurize it, it should now be pushed ‘out’. You can read more about this on p32 of the (excellent) Deep6 service manual here.

Checking these 3 posts out for details: (click them to show the diagrams)

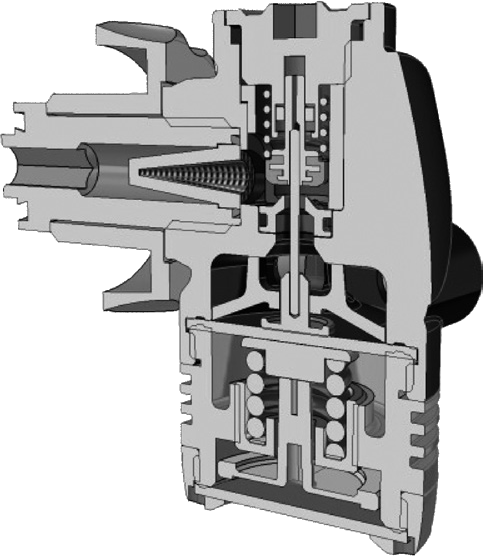

I've taken a quick glance at the cutaway of the T10 and something seems off with what you describe.

As with any other drysealed diaphragm first stage, the environmental seal should not be pressing on the transmitter without outside force, e.g. pressure.
View attachment 799335

I can't be sure without having that particular regulator in my hand and I never had it in my hand as mentioned above, but I suspect there is something assembled wrong.
My best bet is the spring not sitting flush on the washer that protects the main diaphragm. For whatever reason your transmitter is getting pushed too far to the environmental seal end.

I worded this poorly. They will be in contact at all times, but there really shouldn't be any pushing towards the main diaphragm going on, except in changes of ambient pressure.

Think about the dry seal diaphragm as just an "extension" of the main diaphragm. As the main diaphragm can't sense changes in pressure by being cut off from the water, the transmitter/transducer is there to well, transmit, these pressure changes. All three, main diaphragm, transducer, and dry seal diaphragm should be in constant contact with each other.
But any excess force on either one of the three will be transmitted to the others. They move as a unison in operation.

The cutaway of the T10 doesn't do it justice, it is a poorly made cutaway with the dry sealed diaphragm not being in touch with the transducer.

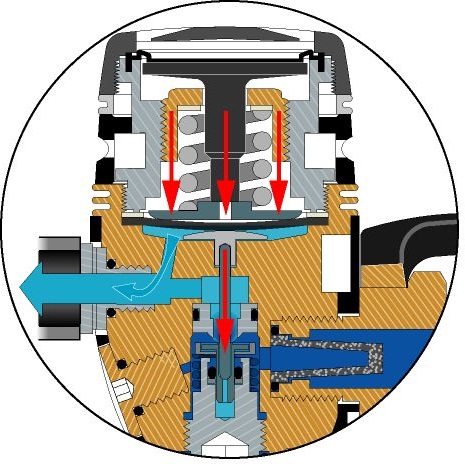

Maybe this cutaway of a Aqualung Legend can show better what my poor wording is trying to convey.

View attachment 799352

This whole debate started when it was asserted that the air bubble that sometimes forms between the two diaphragms is of no concern. In a sense that is correct if we look at the above drawings. If we removed the pressure transducer, the whole mechanism would work just as well, at least in principle and with the above mentioned caveats. And here it doesn't really matter if there is a air bubble or not.

However, this would assume that the pressure would propagate as it would in an unsealed or imaginative transducer removed scenario, where the volume in the chamber between the two diaphragms changes. Yet this is clearly not the case, as we do have a transducer in place, which essentially keeps the volume between the two diaphragms at a fixed rate (Again, within certain limits, the diaphragms are somewhat flexible at their edges, so it is not a real rigid container in the true sense).


And here comes the real reason why this air bubble between the diaphragms and an outward bulge is bad news:
First off, it is important to understand that the effective diameter of the inner and outer diaphragm differ. This difference in the diameter of the diaphragm is a complex calculation and partly due to different stiffness of the materials that either diaphragms are made out of. The outer diaphragm is almost always made of an extremely flexible material, while the inner diaphragm is made up of a stiffer "sandwich". This coupled with their different diameters will results in different forces being applied, as pressure is defined as a certain force acting on a given area (PPressure=FForce / AArea).

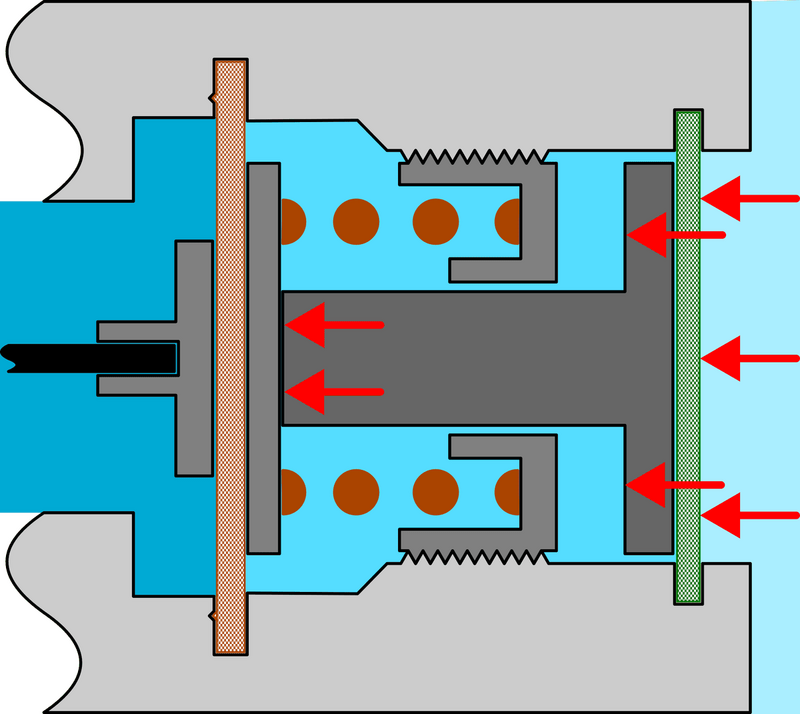

Going back to our properly setup sealed diaphragm without a an air bubble, we can see that the crucial calculation lies between the top diameter of the transducer and its lower diameter. Whatever force is applied to the top of that diameter will proportionally be applied to the bottom of the transducer. Remember that the pressure inside the dry chamber does not change, it is a semi-rigid container!
View attachment 876930

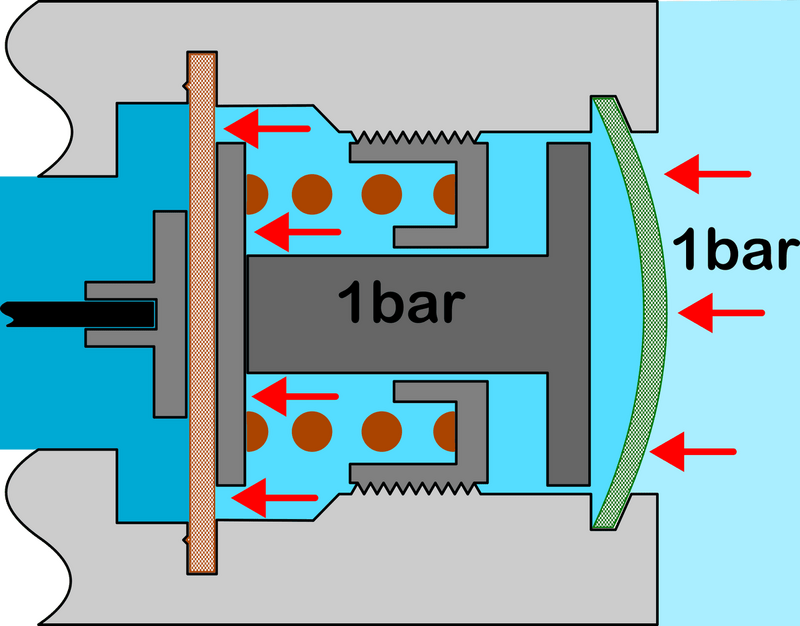

If we look at the below graphic and imagine the air bubble having to get compressed before the outer diaphragm touches the transducer, we can see how the pressure now acts differently. Due to the outward bulge and the flexible outer diaphragm, the pressure on either side of that environmental seal will be equal. Our state at the surface would like as follows:
View attachment 876928

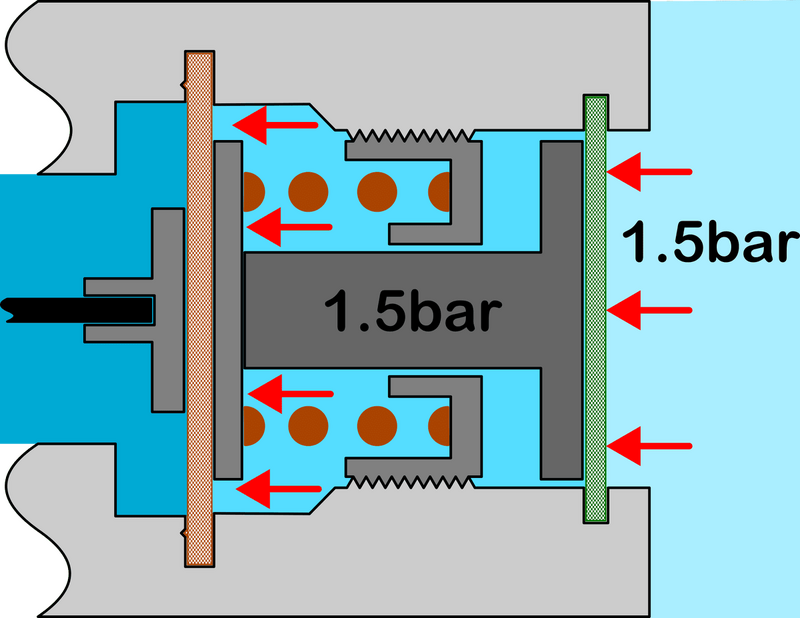

The trouble arises, once we start to descend. Now the pressure inside the whole chamber will change, as we had an air bubble present that was able to get compressed. We didn't have a rigid container as a dry chamber anymore, but a flexible one until the diaphragm touched the transducer again.
View attachment 876929

And contrary to popular belief, there will be no lag in change of intermediate pressure, but rather a hastening in the increase of intermediate pressure. This part is almost universally understood poorly, as our intuition jumps to the conclusion that the sensing in pressure changes would be delayed.

In a nutshell, the key-points are:
  • The pressure inside the ambient chamber does not change with depth on a sealed diaphragm regulator. Ask yourself if the volume changes or if any gas gets added? The answer to both is no, so pressure must remain constant.
  • As it is a rigid container, pressure must be translated by the transducer and nothing else.
  • Once we have an outside bulge with an air bubble, the rigid container requirement is violated and the now flexible ambient chamber can up to a certain point directly translate pressure onto the main diaphragm. This leads to a hastening in intermediate pressure increase, not a lag of it.
I hope that this clears up things a little, as I often see the concept of a dry chamber on a diaphragm regulator and its pressure transducer misunderstood.

Oh also this one to get the full picture:
I should have been a bit clearer in my previous explanations, especially the conclusion.

I fundamentally believe that we as humans are terrible at visualizing pressure, which very often leads to wrong conclusions. We often think of it as an object or liquid like water pushing onto something. If that something is something flexible, like a diaphragm that will bulge, in our mind, the object rolls or flows into the bulge, concentrating pressure. In our mind we follow this object or liquid and try to find the point where it is the "heaviest". At least I catch myself in a thought-process like this very often and can see that students often think along the same lines when they pose certain questions.
But that is exactly what pressure is not. Pressure is something that acts perpendicular and equally onto all surfaces in which it is contained, be it up, down, left or right.

Let me try to address a couple of points.

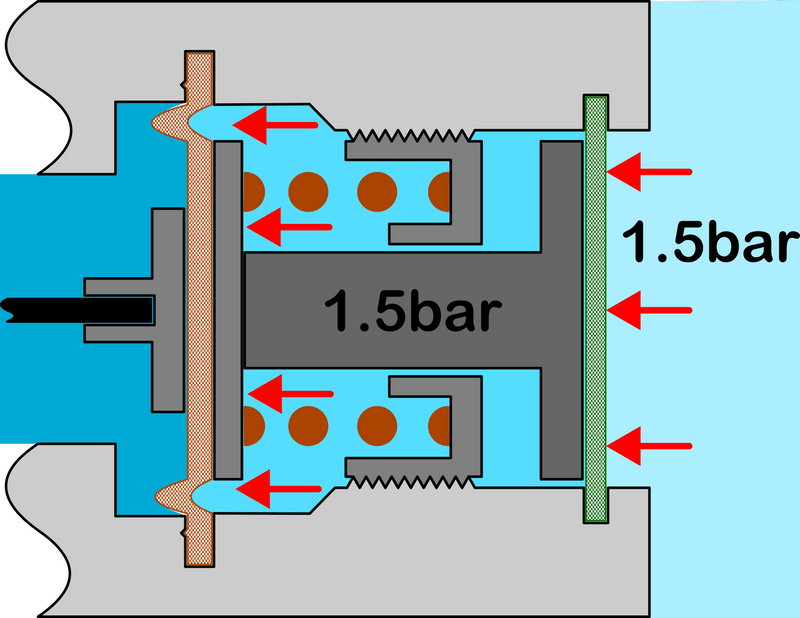

If I understand Roberts point correct, he believes that when starting with a bubble, which allows pressure directly to be transmitted from ambient pressure to the dry chamber, the diaphragm is flexible enough between the wall and the spring disc, over-dramatically drawn like this:
View attachment 876979

And in a sense that is absolutely correct, the diaphragm will flex somewhat in that region. However, the force does not concentrate on the flexible part of the diaphragm as I tried to outline above. Rather it will act perpendicular across the whole diaphragm, which also means it acts across the spring disc, where in a proper setup usually only the transducer and bias spring act upon. Crucially, the force does not concentrate in a single area, pressure acts equally perpendicular on the whole diaphragm!

Now as to why this actually hastens intermediate pressure rising until the bubble collapses onto the transducer:

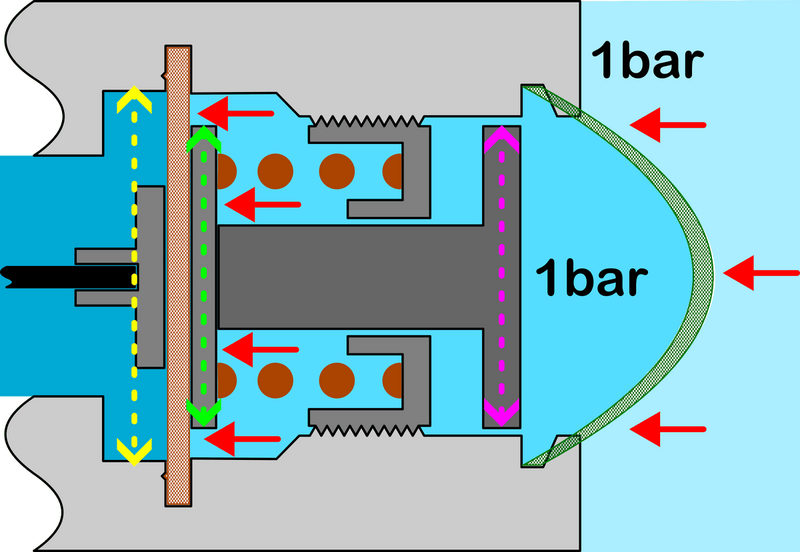

For the sake of the argument, going forward let us assume a bubble which doubles the volume of the dry chamber. I know that this is ludicrous, but it makes the math a bit easier to follow and holds just as true for a tiny bubble. Our starting position at the surface would look as follows:
View attachment 876981

As I mentioned, the diaphragms are not the same diameter. Again, earlier I should have been much clearer on this point. In a properly setup transducer design with no bubble, the important ratio is not any ratio between the diaphragms, but rather the very top of the transducer and the bottom of the spring disc. The transducer will press onto this disc and is for calculation or engineering purposes one single part.
In short, whatever presses onto the top of the transducer, gets translated into a certain force on the bottom of the spring disc.

Lets pick some more arbitrary numbers and while the numbers are somewhat arbitrary, certain conditions must be fulfilled by them:
  1. The diameter of the main diaphragm shall be our biggest number. By diameter I refer to the clearance between the brass walls. The diaphragm gets somewhat buried along its edge into this brass wall, but we mean the inner diameter, which is the yellow line in our picture. Let us say that it is 40mm in diameter.
  2. The diameter of the disc spring shall be smaller than the diameter of our diaphragm. This is our green line. Let us assume it is 30mm in diameter.
  3. From an engineering point of view, it would be ideal if the spring disc diameter (green line) has the exact same diameter as the very top of our pressure transducer (pink line). This isn't as trivial as it sounds, which I will get to later.
That is pretty much all we need to get us started. Let us pretend we dive with a properly setup system and the numbers from above to 10m, so that ambient pressure increases to 2bar. The outer diaphragm acts upon the top of the transducer, which transmits its force to the bottom of the spring disc, which in turn transmits it further onto the main diaphragm.
We start by calculating the area of the spring disc, which is ideally the same as the area of the top of the pressure transducer.

ASpring disc = π x rSpring disc2
ASpring disc = π x 0.015m2
ASpring disc = 0.00070686m2

We go on to calculate the force acting upon this part at 2bar, where 2bar equals 200000Pa and Force is defined as: FNewton = PPascal x Am2

FNewton = 200000Pa x 0.00070686m2
FNewton = 141.372N

In our properly setup system, we have a force of roughly 141N acting upon on the main diaphragm.

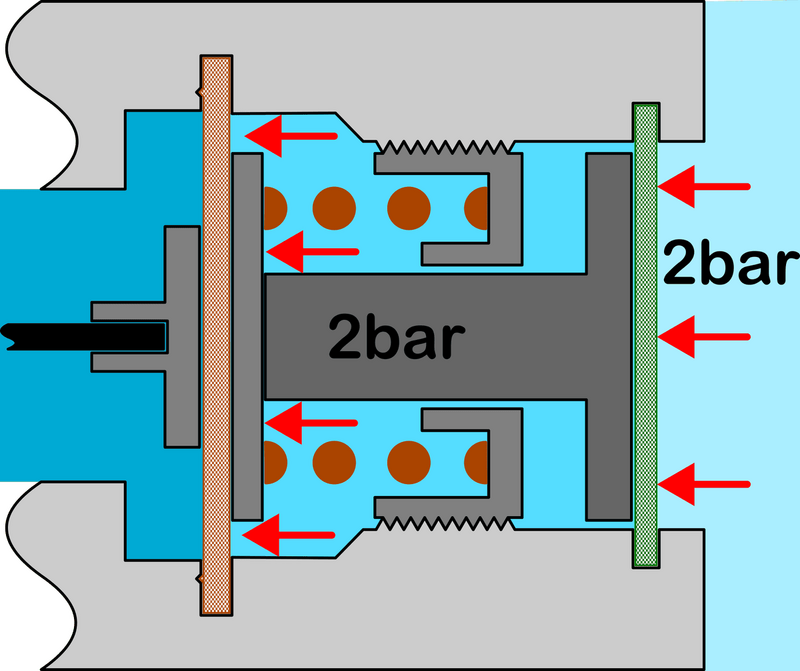

Let us do exactly the same, but this time with our big bubble. Remember, in this scenario the ambient pressure acts directly onto the main diaphragm, until the bubble collapsed onto the transducer. The moment just before the outer diaphragm touches the transducer would like like this:
View attachment 876983

AMain diaphragm = π x rMain diaphragm2
ASpring disc = π x 0.020m2
ASpring disc = 0.00125664m2

FNewton = 200000Pa x 0.00125664m2
FNewton = 251.327N

As we can see, the main diaphragm is exposed to a much larger force, 251N vs. 141N in the properly setup system. The reason for it is rather simple. It has a much larger surface area for the pressure to act upon than the spring disc does.
And because a larger force acting upon the diaphragm translates directly into an increase in intermediate pressure, intermediate pressure actually hastens at rising until the bubble collapsed and the main diaphragm is not directly exposed to ambient pressure anymore.

Now it must be said that for all intends and purposes the person that is correct is here @lowwall. I have deliberately picked vastly exaggerated numbers to show the difference. For real world scenarios the effect is virtually negligible.

I also vastly simplified the mathematics. In reality its not the entire transducer area at the top involved in the transmission of the force. This would require a limitless stretchable environmental seal, which is nonsense. At its edge it will be ever so slightly less stretchable, the further the transducer has to move in a given cycle to equalize depth changes. That's one reason that manufacturers like to draw the edge of this diaphragm so squiggly (Brown bit below).

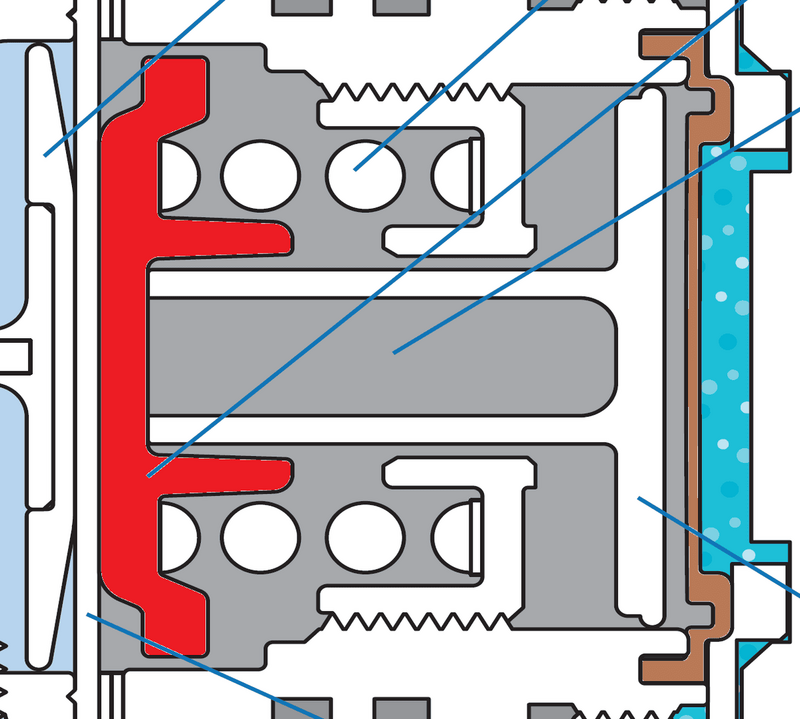

Furthermore, the spring disc oftentimes is a cup (Red bit below), which transmit a bit of force onto the main diaphragm along it's cupped edge. But I must admit that taking all this into account is way beyond my mathematical capabilities. Borrowing from the MK17 EVO cutaway:
View attachment 876985

Robert raised a very interesting point about the origin of the excess gas and as he correctly points out there are only two ways gas can get inside the dry chamber.
  1. From the environmental seal: During storage the main diaphragm pulls the environmental seal towards it, creating an area of less than ambient pressure. If the environmental seal wasn't sound, gas could creep into the dry chamber, equalizing the area with its surrounding during storage. The trouble I always had with this explanation, is that whatever path the gas took, would almost certainly be taken by water during diving. In fact, the pressure differentials during a dive on either side of the environmental seal are vastly bigger than they are during storage. As I have encountered very few flooded dry chambers and if water was present, it usually was literally flooded, I think this is not the path the gas will take.
  2. From the main diaphragm: This part is an actual bitch to engineer. The outer diaphragm is really simple, as it isn't exposed to any actual great forces onto most of its body. The transducer fills in the gap underneath it almost entirely, which gives it a great place to rest upon. Quite literally you can make environmental seals successfully out of a plethora of materials yourself. However, the main diaphragm is an entirely different beast. It has to be flexible to a fair amount, very sturdy (See @CG43 explanation of a pressure differential of 20bar to 1bar at 100 meters for example, and at the same time impermeable by gases. And the last part is very hard to engineer while satisfying the other two conditions. Very often when I did encounter a bulge, it was from technical divers that used TRIMIX. Robert mentioned above how hard it is to contain helium reliably which is absolutely true.
The problem I have with explanation number 2 is that not all bulges I got into the workshop had been from technical divers. Regardless, I find the somewhat permeable membrane explanation the most likely but must admit I do not know for sure.

All those diagrams are referencing a regulator that is pressurized. When the reg is pressurized, the environmental seal should be pushed out.

There's been some back and forth lately on to what extent it not being like this is a problem (tl;dr, it's not, at least not a significant one). In any case, it being "sucked in" in the default unpressurised case is optimal.

One more caveat, eventually a leak will happen and the diaphragm will eventually start going out — it’s not a big deal as Jborg mentioned (unless you want peak performance/response)
The easy way to deal with it is to unscrew the top cap (env seal cap), pressurize on tamk, reseat/reinstall the env diaphragm (flat), screw cap on
This happenes in the range of 3-12mo

Of course a tool is needed here (and for Apeks regs it’s a more annoying process that needs 2 tools)

Again, it’s not gonna harm you if ot has a “bubble”, and doubtful you’ll feel it’s impact while diving
So unless you’re a diy reg person, best not think about it

That’s a good thing actually, the environmental seal should be at a „vacuum“ so that it responds instantly to ambient pressure
The “bad” variant of this case if you have a bubble
Thank you. Puts my mind at ease. Did 4 dives today and the regulator performed excellent. Major step up from rental gear

That is the correct way for it to be installed. When you put the reg on a tank and pressurize it, it should now be pushed ‘out’. You can read more about this on p32 of the (excellent) Deep6 service manual here.
Thank you I will take a look
